SAOL Series
Copied to clipboard

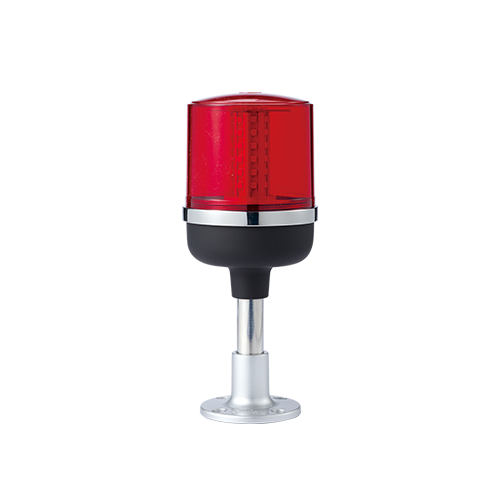

SAOL1
- Product Feature
17cd ±25%
- Voltage
DC:12V,24V│AC:110V-220V
- Dimension
Diameter : Ø115 │Height : 275
- Materials
العدسات-PC │المبيت-PC │Bracket-Al
- Protection rating
IP56
- Certificate
※ Please refer to technical information page for detailed specification including measurement.
(PDF Viewer, PDF Download, Auto-CAD)
Product Feature
Product Feature- Low intensity A type aviation obstruction lights are installed onto fixed objects that are less than 150m from the land or water surface
- LED light source with long lifespan (25 times than bulb)decreases the replacement cost of the bulb replacement
Product Specifications
| ICAO standard | Low intensity A type | ||
| Light source | High intensity light emtting diodes(LED) | ||
| Light color | Red | ||
| Light function | Steady | ||
| Rated voltage | DC12V, DC24V, AC110V-220V | ||
| Power Consumption | Max.20W | ||
| Standard housing color | Black | Cable entry | Ø20 |
| Materials | Lens-PC, Housing-PC, Lens ring-STS316L, Pole-SUS304, Bracket-Al | ||
| Protection rating | IP56 | Ambient operating temperature | -30℃ to +50℃ |
| Certificates | | Luminous intensity | 17cd ±25% |
※ CE compliant: DC24V
