SH Series
Copied to clipboard

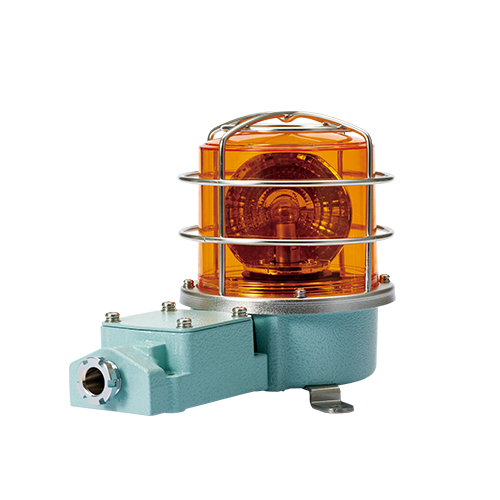

SH1T
Weatherproof Revolving Beacons / Visual Signal Alarms
- Voltage
DC:12V,24V│AC:110V,220V
- Dimension
Lens Diameter : Ø119 │Height : 168 │Length : 234
- Materials
العدسات-PC │المبيت-Al
- Protection rating
IP66
- Certificate
※ Please refer to technical information page for detailed specification including measurement.
(PDF Viewer, PDF Download, Auto-CAD)
Product Feature
Product Feature- Aluminum housing and polycarbonate lens material provides excellent impact resistance under seismic conditions
- Excellent hermetic structure that blocks water and dust
- Terminals located inside the terminal box
- Excellent light diffusion effect with multi faced reflector
- Adopts a special power transmission system that reduces noise and wear
- Revolving speed : 120-140RPM
- Standard housing color : MUNSELL No. 7.5BG 7/2
- Materials : Lens-PC, Housing-Al, Protection cage-STS316L, Reflector-Heat resistant ABS, Bracket-STS316L
- Ambient operation temperature : -20°C to +50°C
- Standard housing color : MUNSELL No. 7.5BG 7/2
- Cable entry :1/2″PF
- Protection rating : IP66
- Certificates : CE
Product Specifications
| Model number | Voltage | Current | Bulb | Certificates | Color | ||
|---|---|---|---|---|---|---|---|
| Spec | Standard | Parts no | |||||
| SH1 SH1P SH1T SH1TP | DC12V | 1.55A | 12V15W | G23 15S | 17 | |  R-Red  A-Amber G-Green B-Blue |
| DC24V | 850mA | 24V15W | G23 15S | 18 | |||
| AC110V | 200mA | 12V15W | G23 15S | 17 | |||
| AC220V | 100mA | 12V15W | G23 15S | 17 | |||
