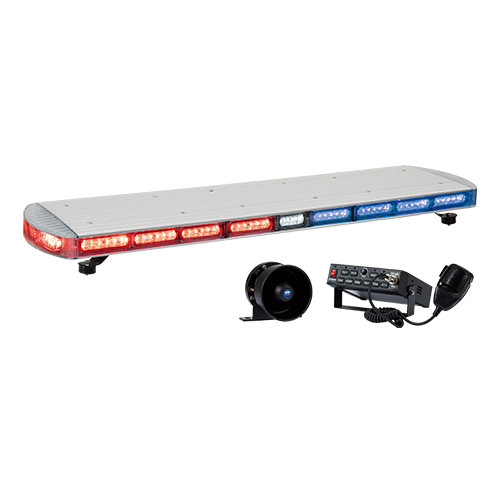

QLV Series
Copied to clipboard
QLV-SET
Max.135dB
- Product Feature
صوتًا مُدمجًا (Max. 135dB at 1m)
- Voltage
DC:12V
- Dimension
□300×64 │Height : 129 │Length : 885-1250
- Materials
العدسات-PC │الغطاء-Al │اللوحة-Al
- Protection rating
IP56
- Certificate
※ Please refer to technical information page for detailed specification including measurement.
(PDF Viewer, PDF Download, Auto-CAD)
Product Feature
Product Feature- Compact and aerodynamic design minimizes air resistance in high speed vehicles
- Transparent polycarbonate outer and inner lens provides clear signal light transmission
- Strong mechanical strength, heat, and UV light resistance
- Excellent protection from vibration and impact with use of aluminum boards for both the top and bottom plates
- Internal heat discharges naturally because each LED module adopts an excellent heat dissipative structure
- QLV-SET includes amplifier that has a built-in one-touch switch for selection between signal sound and warning light
- QLV-SET includes a 100W high volume horn with clear warning sounds
- 1,250mm, 1,150mm and 885mm length models are also available
- Available in customized color arrangements
- Flashing rate : 60-80/min
- Ambient operating temperature : -30℃ to +50℃
Product Specifications
| Model number | LED module number | Voltage | Current | Volume | Certificate | Weight | Color |
|---|---|---|---|---|---|---|---|
| QLV-1250-SET | 24EA | DC12V | 26.5A | Max.135dB | | 20.31kg |   Blue-Red Red-Red Amber-Amber Green-Green |
| QLV-1150-SET | 22EA | 26A | 19.42kg | ||||
| QLV-885-SET | 18EA | 25A | 16.77kg |
