STA Series
Copied to clipboard
STA45SLMP
Max.90dB
- Product Feature
Зуммер с фиксированной громкостью (Max. 90dB at 1m) : дополнительно
- Voltage
DC:12V,24V
- Dimension
Diameter : Ø45mm │Height : │398-568
- Materials
Линза-Acryl │Внутренняя линза-AS │Корпус-Al
- Protection rating
IP44 (Standard)│IP23 (Buzzer type)
- Certificate
※ Please refer to technical information page for detailed specification including measurement.
(PDF Viewer, PDF Download, Auto-CAD)
Product Feature

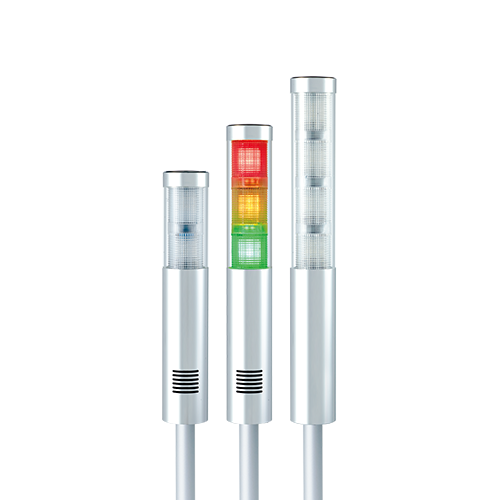

Product Feature- Ø45mm pole mount tower lights
- Aluminum housing displays a unique metallic luster that defines a high class product
- Excellent visibility by using a high brightness LED with a special diffusion lens
- Lens maintains a semi-transparent color when not emitting the specific color of the signal under operation
- Steady mode only(can operate flashing mode with external control) with fixed user selected color arrangement
- Built-in buzzer available (Volume : Max. 90dB at 1m)
- Materials : Lens-Acrylic, Filter lens -AS, Housing-Al, Pole-Al
- Ambient operating temperature : -30°C to +50°C
- Protection rating : Standard type-IP44, Built-in buzzer type-IP23
- Certificates : CE Compliant, UL Listed
Product Specifications
| Model number | Layer | Voltage | Certificates | Weight | Color |
|---|---|---|---|---|---|
| STA45SLMP Steady STA45SLMP-BZ Steady/ w built-in buzzer | 1 | DC12V DC24V | | 0.56kg |  R-Red |
| 2 | DC12V DC24V | 0.60kg | R-Red G-Green | ||
| 3 | DC12V DC24V | 0.64kg | R-Red A-Amber G-Green | ||
| 4 | DC12V DC24V | 0.69kg | R-Red A-Amber G-Green B-Blue | ||
| 5 | DC12V DC24V | 0.74kg | R-Red A-Amber G-Green B-Blue W-White |
Light source/buzzer current(based on 1 layer)
Voltage | DC12V | DC24V |
|---|---|---|
Light source current(1 layer) | 100mA | 50mA |
| Buzzer current | 40mA | 75mA |
Sound Tone Combination of Standard Product
| Sound Category | Sound Tone | Sound |
|---|---|---|
| 1 Buzzer Sound | Pi-- Pi-- slow |
