SNES Series
Copied to clipboard

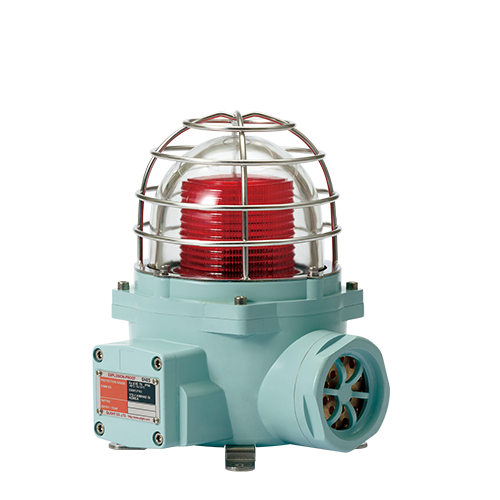

SNES-S
- Product Feature
Встроенный зуммер (Max.105dB at 1m)
- Voltage
DC:12V,24V│AC:120V,230V
- Dimension
Cage Diameter : Ø152 │Height : 238 │Length : 183
- Materials
Линза-Закаленное стекло │Корпус-Al
- Protection rating
Ex db IIC T6 Gb IP66│Ex db op is IIC T6 Gb (with LED)
- Certificate
※ Please refer to technical information page for detailed specification including measurement.
(PDF Viewer, PDF Download, Auto-CAD)
Product Feature
Product Feature- Light weight and compact explosion proof signal beacon / light with siren buzzer
- Aluminum housing provides excellent durability
- Fully enclosed structure with protection rating of IP66
- Lamp connector fastening structure allows for convenient lamp replacement
- Excellent long-distance visibility with strong flashing signal diffusion
- Flashing rate : 60-80 flashes/min
- Integrated housing and terminal box model
- Housing standard color : MUNSELL No. 7.5BG 7/2
- Cable entry : 1/2″ NPT
- Protection rating
IECEx - Ex db IIC T6 Gb, Ex db op is IIC T6 Gb (with LED)
ATEX –
II2G Ex db IIC T6 Gb, Ex db op is IIC T6 Gb (with LED)
KCs - Ex d IIB+H2 IP66 T6
NEPSI, CCC - Ex db IIC T6 Gb - Ambient operating temperature
-40°C ≤ Tamb ≤ +60°C
-40°C ≤ Tamb ≤ +55°C(KCs)
II2G Ex db IIC T6 Gb, Ex db op is IIC T6 Gb (with LED)Product Specifications
| Model number | Voltage | Current | Xenon lamp | Sound pattern/dB | Certificates | Weight | Color | ||
|---|---|---|---|---|---|---|---|---|---|
| Spec | Standard | Parts no | |||||||
| SNES-S | DC12V | 590mA | 200V-350V | BGA2120-BBC I type | 48 | • Warning sounds(Buzzer) : Max.105dB | | 3.60kg |  R-Red A-Amber G-Green B-Blue |
| DC24V | 450mA | 3.60kg | |||||||
| AC120V | 120mA | 4.25kg | |||||||
| AC230V | 80mA | 4.25kg | |||||||
※ Customization : 48VDC voltage product (excluding KCs)
Sound Tone Combination of Standard Product
| Sound Category | Sound Tone | Channel | Sound |
|---|---|---|---|
| 1 Warning Sounds | Emergency WA-U(YELP)Sound |
