S Series for vehicle
Copied to clipboard

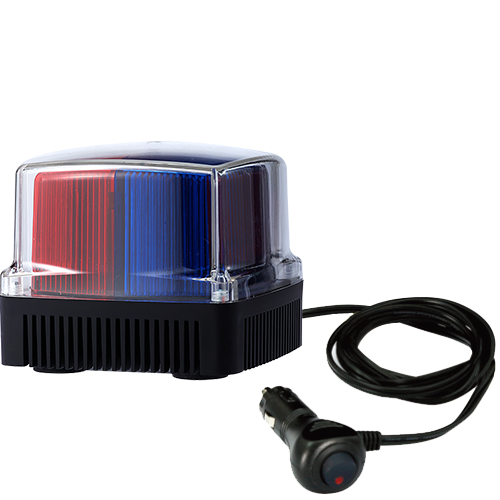

SKTLBM
Max.105dB
- Product Feature
Зуммер с фиксированной громкостью (Max. 105dB at 1m)
- Voltage
DC:12V,24V
- Dimension
Cubic : □105×105 │Height : 90
- Materials
Линза-PC │Корпус-PC
- Protection rating
IP66
- Certificate
※ Please refer to technical information page for detailed specification including measurement.
(PDF Viewer, PDF Download, Auto-CAD)
Product Feature
Product Feature- High brightness LED with special light filter structure provides clear signal light transmission even in outdoor environments with intense sunlight
- Excellent vibration and impact resistance with use of polycarbonate lens
- Lens with special coating material maintains transparency even when exposed to harsh environments where scratches, dust and direct sunlight is possible
- Water resistant, dustproof, and weather resistant structure provides excellent durability under harsh environments such as rainstorms, frost, and intense heat
- Different lights from side to side improve efficiency of emergency signal transmission effect
- 4 strong magnets enable secure attachment to the desired place
- Convenient emergency signal sound control with built-in ON/OFF switch
- Easy control of warning sound with built-in ON/OFF switch
- Ambient operating temperature : -30°C to +50°C
Product Specifications
| Model number | Voltage | Current | Certificates | Weight | Volume | Color |
|---|---|---|---|---|---|---|
| SKTLBM | DC12V | 480mA | | 0.55kg | Max.105dB |   R/B-Red/Blue |
| DC24V | 290mA | 0.55kg |
ㆍSound volume: Max.105dB at 1m
ㆍEasy control of warning sound with built-in ON/OFF switch
ㆍLight effect : Flashing left and right
※ CE compliant: DC24V
