SJ Series
Copied to clipboard

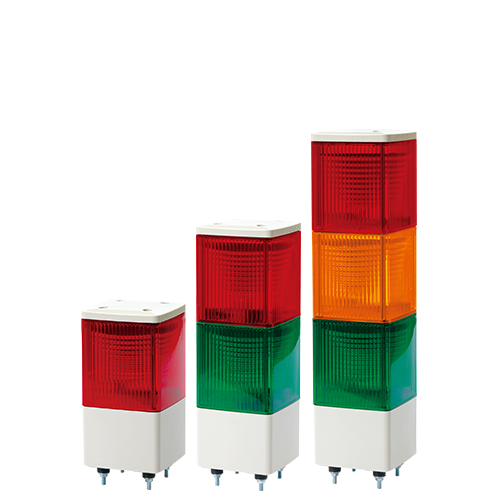

SJL
Max.90dB
- Product Feature
Зуммер с фиксированной громкостью (Max. 90dB at 1m) : дополнительно
- Voltage
DC:12V-24V│AC:110V,220V
- Dimension
Cubic : □95×95 │Height : 183-375
- Materials
Линза-AS │Корпус-ABS
- Protection rating
IP44
※ Please refer to technical information page for detailed specification including measurement.
(PDF Viewer, PDF Download, Auto-CAD)
Product Feature
Product Feature- Beautiful appearance from stacking 95×95mm cubed tower lights
- Multi signal transmission in space of 1 signal light
- Strong LED signal light emitted through the 96mm height diffusion lens
- Built-in buzzer available (Volume Max. 90dB at 1m)
- Fixed lens color
- Standard color
1Layer -
R-Red
2Layers - R-Red
G-Green
3Layers - R-Red
A-Amber G-Green - Flashing rate : 60-80 flashes/min
- Materials : Lens-AS, Housing-ABS, Reflector-Heat resistant ABS
- Ambient operation temperature : -30°C to +50°C
- Protection rating : IP44
- Certificates : CE Compliant
- Compliant with RoHS directive
Product Specifications
| Model number | Layer | Voltage | Certificates | Weight | Color |
|---|---|---|---|---|---|
| SJL | 1 | DC12V~24V | - | 0.63kg | R-Red |
| AC110V | 0.80kg | ||||
| AC220V | 0.80kg | ||||
| 2 | DC12V~24V | 0.76kg | R-Red G-Green | ||
| AC110V | 1.03kg | ||||
| AC220V | 1.03kg | ||||
| 3 | DC12V~24V | 1.01kg | R-Red A-Amber G-Green | ||
| AC110V | 1.24kg | ||||
| AC220V | 1.24kg |
• Strong LED signal light emitted through the 96mm height diffusion lens
• Fixed lens colors
• Flashing rate: 60-80 flashes/min
• Ambient operation temperature: -30°C to +50°C
• Compliant with RoHS directive
Light source current(based on 1 layer)
Voltage | DC12V~24V | AC110V | AC220V |
|---|---|---|---|
Light source current(1 layer) | Max.185mA | 80mA | 40mA |
| Buzzer current | Max.35mA | 60mA | 30mA |
