SEBAL

SEBA Series Copied to clipboard

SEBAL

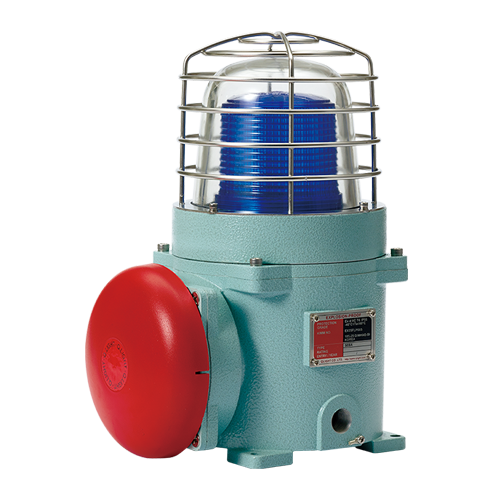

Explosion Proof LED Steady/Flashing Signal Beacon & Alarm Bell
Combinations / Hazardous Area Combined Audible & Visual Alarm
Max.95dB
LED Steady/Flashing TypeIP55-40℃ ~ +60℃Alarm Bell95dB
  • Product Feature

    Сигнальный звонок (Max.95dB at 1m)

  • Voltage

    DC:24VAC:110V,220V

  • Dimension

    Cage Diameter : Ø167 Height : 333 Depth : 240

  • Materials

    Линза-Закаленное стекло Корпус-Al

  • Protection rating

    Ex d ⅡC T6IP55

※ Please refer to technical information page for detailed specification including measurement.

(PDF Viewer, PDF Download, Auto-CAD)

  • Product Feature
  • Product Specifications
  • Download

Product Feature

Product Feature
  • Large explosion proof signal beacon / light & alarm bell combinations
  • Long product lifetime with the application of a high intensity LED light source
  • Suitable for locations where bulb replacement is inconvenient
  • Flashing rate : 60-80 flashes/min(Built in switch for steady/flashing selection)
  • Standard housing color : MUNSELL No. 7.5BG 7/2
  • Cable entry : 1/2″ NPT
  • Materials: Lens-Tempered glass, Filter-PC, housing-Al, Protection cage-STS316L, Reflector-ABS
  • Protection rating : Ex d ⅡC T6, IP55
  • Ambient operating temperature : -40°C ≤ Tamb ≤ +60°C

  • Product Feature
  • Product Specifications
  • Download

Product Specifications

Model
number
VoltageCurrentVolumeCertificatesWeightColor
SEBALDC24V210mA
Max.95dB-
7.25kg R-Red
A-Amber
G-Green
 B-Blue
AC110V160mA
7.99kg
AC220V70mA
7.99kg

  • Product Feature
  • Product Specifications
  • Download

Download

※ If the PDF file does not display properly, please use [Adobe Reader], the official PDF viewer.
