S60AD/QAD Series
Copied to clipboard
S60ADL
Max.95dB
- Product Feature
Высокочастотный зуммер (Max. 95dB at 1m)
- Voltage
DC:12V,24V│AC:110V,220V
- Dimension
Lens Diameter : │Ø60(Approx.) │Height : 233 │Depth : 86
- Materials
Линза-AS │Корпус-ABS
- Protection rating
IP54
- Certificate
※ Please refer to technical information page for detailed specification including measurement.
(PDF Viewer, PDF Download, Auto-CAD)
Product Feature

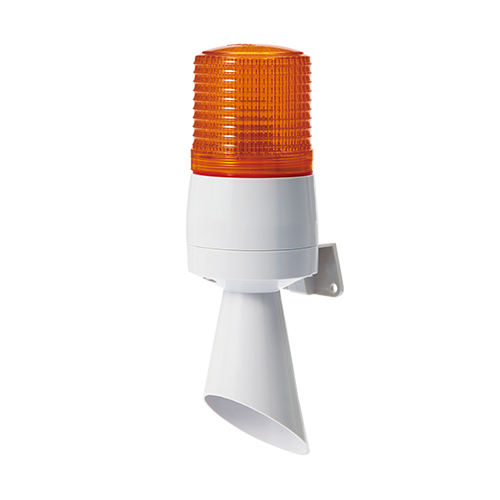

Product Feature- Ø60mm warning light with high volume built-in buzzer in a vertical configuration
- Cone-shaped horn helps diffuse sound to generate clear and distinctive sound signals
- Suitable for applications that require downward audible signals in elevated locations
- LED reflector with multi-tiered design provides an even and clear illumination throughout the entire lens
- Selectable between steady and flashing mode
- Buzzer sound volume (Max. 95dB at 1m)
- Flashing rate : 60-80 flashes/min
- Materials : Lens-AS, Body-ABS, Reflector-Heat resistant ABS
- Ambient operating temperature : -30°C to +50°C
- Protection Rating : IP54
- Certificates : CE Compliant
Product Specifications
| Model number | Voltage | Current | Certificates | Weight | Color |
|---|---|---|---|---|---|
| S60ADL | DC12V | 165mA | | 0.17kg |  R-Red A-Amber G-Green B-Blue |
| DC24V | 125mA | 0.17kg | |||
| AC110V | 55mA | 0.32kg | |||
| AC220V | 35mA | 0.32kg |
• LED reflector with multi-tiered design provides an even and clear illumination throughout the entire lens
• Selectable between steady and flashing mode
Sound Tone Combination of Standard Product
| Sound Category | Sound Tone | Voltage | Sound |
|---|---|---|---|
| 1 Buzzer Sound | Turu~ Continuous ※Intermittent sound is also available |
AC DC |
