S Series for vehicle
Copied to clipboard

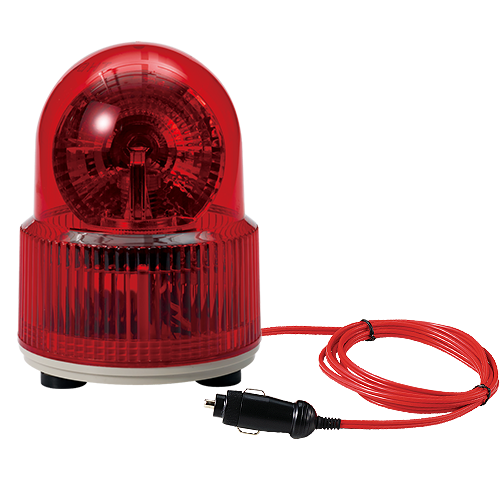

S125MLR
LED Revolving Warning Lights for Vehicle
Max.90dB
- Product Feature
Зуммер с фиксированной громкостью (Max. 90dB at 1m) : дополнительно
- Voltage
DC:12V,24V
- Dimension
Lens Diameter : Ø119(Approx.) │Height : 161
- Materials
Линза-AS │Корпус-ABS
- Protection rating
IP54
※ Please refer to technical information page for detailed specification including measurement.
(PDF Viewer, PDF Download, Auto-CAD)
Product Feature
Product Feature- Ø125mm standard LED revolving warning light
- Three powerful magnets provide strong adhesion to the vehicle
- Power supply through cigarette lighter plug
- Excellent omni-directional visibility with LED light collecting system and special multifaceted reflector
- Shock and vibration-resistant from the vehicle with long-lasting LED light bulbs
- Built-in buzzer available(Volume : Max. 90dB at 1m)
- Revolving speed : 120-140RPM
- Materials : Lens - AS, Housing - ABS, Reflector - Heat resistant ABS
- Ambient operating temperature : -20°C to +50°C
- Protection rating : IP54
Product Specifications
| Model number | Voltage | Current | Certificates | Weight | Color |
|---|---|---|---|---|---|
| S125MLR | DC12V | 420mA | - | 0.46kg |  R-Red A-Amber G-Green B-Blue |
| DC24V | 265mA | 0.46kg |
ㆍThree Powerful magnets provide strong adhesion to the vehicle
ㆍPower supply through cigarette lighter plug
ㆍShock and vibration-resistant from the vehicle with long-lasting LED light bulbs
ㆍExcellent omni-directional visibility with LED light collecting system and special multi-faced reflector
ㆍProtection rating: IP54
