QA Series
Copied to clipboard

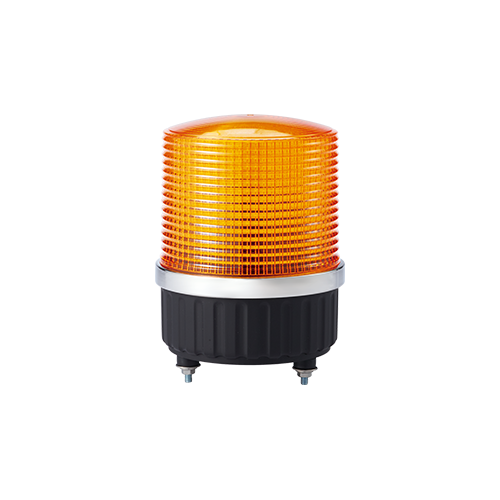

QA125HLS
- Voltage
DC:12V-24V
- Dimension
Diameter : Ø123 │Height : 170
- Materials
Lente-PC │Estrutura-PC
- Protection rating
IP66
※ Please refer to technical information page for detailed specification including measurement.
(PDF Viewer, PDF Download, Auto-CAD)
Product Feature
Product Feature- Ability to compensate for signal attenuation phenomenon that occurs during daytime operation with a powerful xenon lamp.
- Can select between pole mount and direct mount type to fit your application needs.
- Flashing rate : 45-55 flashes/min
- Ambient operation temperature : -30°C to +50°C
- Vibration resistant and shock-proof : Can withstand 15g of vibration and 50g of shock
Product Specifications
| Model number | Voltage | Current | Certificates | Weight | Color |
|---|---|---|---|---|---|
| QA125HLS | DC12V-24V | Max.1.65A | - | 0.55kg |  R-Red A-Amber |
※ DC type model has a free-voltage range of 10V-30V.
