Wall Mount Type Series
Copied to clipboard

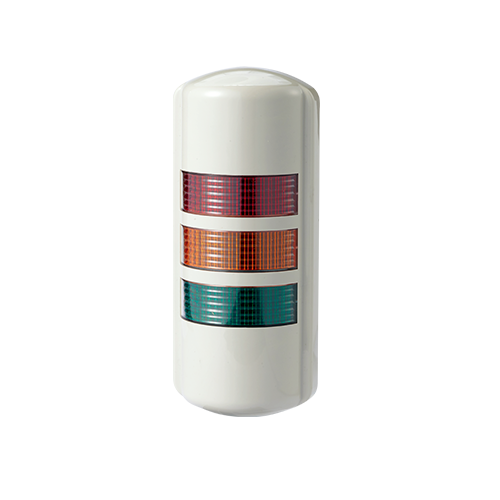

SWTE
LED Signal Towers
Max.90dB
- Product Feature
Buzzer d'alarme au volume fixe (Max.90dB at 1m) : disponible en option
- Voltage
DC:12V-24V│AC:110V,220V
- Dimension
Diameter : Ø90mm(Half) │Height : 216 │Depth : 46
- Materials
Lentille-PC │Boîtier-ABS
- Protection rating
IP55
- Certificate
※ Please refer to technical information page for detailed specification including measurement.
(PDF Viewer, PDF Download, Auto-CAD)
Product Feature
Product Feature- Wall mount model that minimizes the chance of damage from moving obstacles or personnel
- Clear light signals emitted by adding separate color diffusion lenses beneath the outer transparent lens
- LED light distribution structure that directly radiates light to the user provides excellent visibility
- Can be used outdoors with tightly sealed structure
- Standard color arrangements :
2 Colors :
R-Red
G-Green
3 Colors : R-Red
A-Amber G-Green - Flashing rate : 60-80 flashes/min
- Built-in buzzer available (Volume : Max. 90dB at 1m)
- Materials : Lens-PC, Cover-ABS, Housing-ABS, Filter lens-PC
- Ambient operating temperature : -30°C to +50°C
- 24VDC UL listed model is optionally provided
- Certificates : CE Compliant, UL Listed
- Compliant with RoHS directive
Product Specifications
| Model number | Layer | Voltage | Certificates | Weight | Color |
|---|---|---|---|---|---|
| SWTEL Steady SWTELF Steady/Flashing SWTEL-BZ Steady /w built-in buzzer SWTELF-BZ Steady/Flashing /w built-in buzzer | 2 | DC12V-DC24V AC110V AC220V | | 0.27kg 0.42kg 0.42kg | R-Red G-Green |
| 3 | DC12V-DC24V AC110V AC220V | 0.30kg 0.45kg 0.45kg | R-Red A-Amber G-Green |
※ DC type model has a free-voltage range of 10V-30V.
※ CE Compliant: DC12V-24V, UL Listed: DC24V
Light source/buzzer current(based on 1 layer)
Voltage | DC12V~24V | AC110V | AC220V |
|---|---|---|---|
Light source current(1 layer) | Max.60mA | 35mA | 20mA |
| Buzzer current | Max.35mA | 35mA | 20mA |
Sound Tone Combination of Standard Product
| Sound Category | Sound Tone | Sound |
|---|---|---|
| 1 Buzzer Sound | Pi-- Pi-- slow |
|
| 2 Buzzer Sounds (Customized type) |
Pi--- Pi--- moderate Pi pi pi short |
|
| Pi- buzzer continue (Customized type) |
Pi--- continue |
