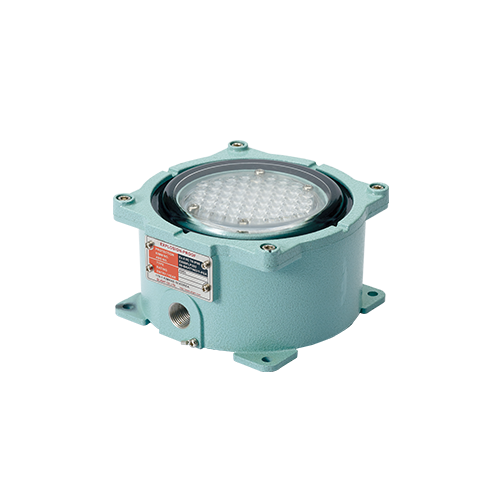

SSEL Series
Copied to clipboard
SSEL
- Voltage
DC:12V,24V│AC:110V,220V
- Dimension
Ø154×154 │Height : 100 │Length : 172
- Materials
Lentille-Verre trempé │Boîtier-Al
- Protection rating
Ex d ⅡC T6│IP66
- Certificate
※ Please refer to technical information page for detailed specification including measurement.
(PDF Viewer, PDF Download, Auto-CAD)
Product Feature
Product Feature- Suitable for helideck and other dangerous areas that require a perimeter light
- Structure minimizing the projection of lens, can be protected from damage by external impact
- Product structure with 100mm height meets the IMD regulation condition
- Aluminum housing provides excellent durability
- Terminal for power wiring located inside of the housing
- Signal Colors :
R-Red
A-Amber
G-Green
B-Blue - Standard housing color : MUNSELL No. 7.5BG 7/2
- Cable entry : 1/2″ NPT
- Materials : Lens-Tempered glass, Housing–Al
- Certificates : KIMM
- Protection rating : Ex d ⅡC T6, IP66
- Ambient operating temperature : -40°C ≤ Tamb ≤ +60°C
Product Specifications
| Model number | Voltage | Current | Certificates | Weight | Color |
|---|---|---|---|---|---|
| SSEL | DC12V | 460mA | | 2.54Kg | R-Red A-Amber G-Green B-Blue |
| DC24V | 250mA | 2.54Kg | |||
| AC110V | 40mA | 2.54Kg | |||
| AC220V | 40mA | 2.54Kg |
