SNE Series
Copied to clipboard
SNE
- Voltage
DC:12V,24V│AC:120V,230V
- Dimension
Cage Diameter : Ø152 │Height : 238 │Length : 183
- Materials
Lentille-Verre trempé │Boîtier-Al
- Protection rating
IP66
- Certificate
※ Please refer to technical information page for detailed specification including measurement.
(PDF Viewer, PDF Download, Auto-CAD)
Product Feature

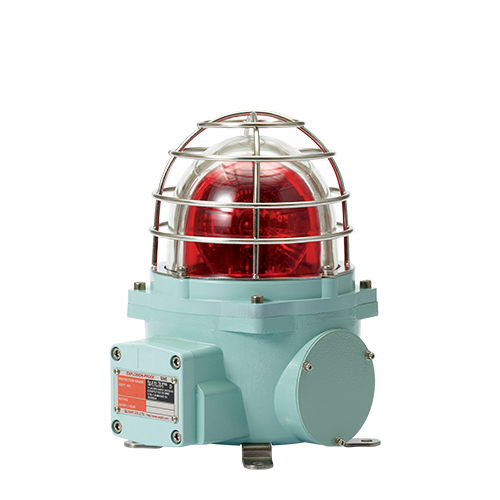

Product Feature- Light weight and compact explosion proof signal beacon / light
- Excellent signal light diffusion effect with multi-faced reflector
- Aluminum housing provides excellent durability
- Fully enclosed structure with protection rating of IP66
- Integrated housing and terminal box model
- Revolving speed : 120-140RPM
- Housing standard color : MUNSELL No. 7.5BG 7/2
- Cable entry : 1/2″ NPT
- Protection rating
IECEx - Ex db IIC T6 Gb, Ex db op is IIC T6 Gb
ATEX -
II2G Ex db IIC T6 Gb, Ex db op is IIC T6 Gb
KCs - Ex d IIC T6
NEPSI, CCC - Ex db IIC T6 Gb - Ambient operating temperature
-40°C ≤ Tamb ≤ +60°C
-40°C ≤ Tamb ≤ +55°C(KCs)
II2G Ex db IIC T6 Gb, Ex db op is IIC T6 GbProduct Specifications
| Model number | Voltage | Current | Bulb | Certificates | Weight | Color | ||
|---|---|---|---|---|---|---|---|---|
| Spec | Standard | Parts no | ||||||
| SNE | DC12V | 1.3A | 12V15W | G23 15S | 17 | | 3.25kg |  R-Red A-Amber G-Green B-Blue |
| DC24V | 690mA | 24V15W | G23 15S | 18 | 3.25kg | |||
| AC120V | 160mA | 12V15W | G23 15S | 17 | 3.95kg | |||
| AC230V | 90mA | 12V15W | G23 15S | 17 | 3.95kg | |||
※ Customization : 48VDC voltage product (excluding KCs)
