SHD Series
Copied to clipboard

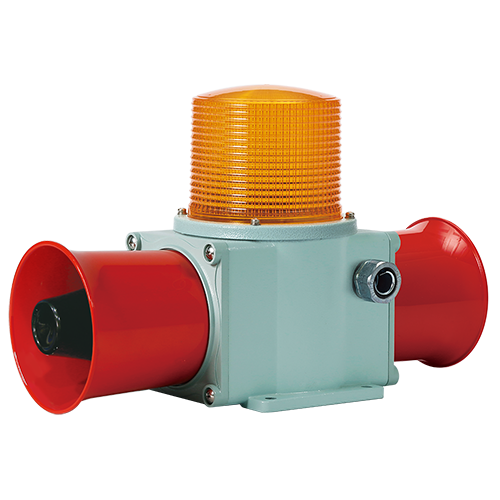

SHD2S
- Product Feature
20 sons intégrés (Max.114dB at 1m)x2, 5 voix définies par l\'utilisateur (108-113dB at 1m)x2
- Voltage
DC:12V,24V│AC:110V,220V
- Dimension
Lens Diameter : Ø119 │Height : 227 │Length : 343
- Materials
Lens-PC │Housing-Al │Protection cage-STS316L │Reflector-PC │Reflector-Heat resistant ABS
- Protection rating
IP66
※ Please refer to technical information page for detailed specification including measurement.
(PDF Viewer, PDF Download, Auto-CAD)
Product Feature
Product Feature- Warning light and electric horn combination models for vessels and heavy industries applications
- Aluminum housing and polycarbonate lens material provides excellent durability under seismic conditions
- Excellent hermetic structure that blocks water and dust
- Superior impact and shock resistance

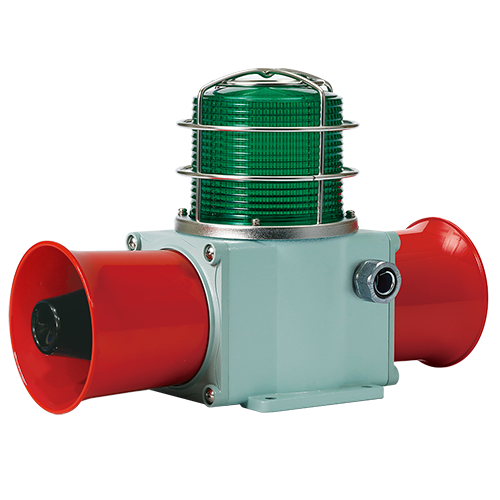

- Equipped with a wire guard
- Terminal box located inside the housing
- Can adjust sound volume and select sound pattern with the switches built inside the products
- Cable entry : 1/2″ PF
- Standard housing color : MUNSELL No. 7.5BG 7/2
- Flashing rate : 60-80 flashes/min
- Ambient operating temperature : -30°C to +50°C
Product Specifications
| Model number | Voltage | Current | Bulb | Sound pattern and volume | Certificates | Weight | Color | ||
|---|---|---|---|---|---|---|---|---|---|
| Spec | Standard | Parts no | |||||||
| SHD2S SHD2SP | DC12V | 4A | 200V-550V | EUB0641-1A(G) U type | 48 | •WS-5 Warning sounds: Max.114dBx2 •WP-5 Special warning sounds: Max.114dBx2 •WM-5 Melodies: Max.110dBx2 •WA-5 Alarms: Max.114dBx2 •WV-5 Customizable voices: 108-113dBx2 | - | SHD2S DC-4.11kg AC-4.44kg SHD2SP DC-4.36kg AC-4.69kg |  R-Red A-Amber G-Green B-Blue |
| DC24V | 2.4A | ||||||||
| AC110V | 580mA | ||||||||
| AC220V | 330mA | ||||||||
Sound Tone Combination of Standard Product
| Sound Category | Sound Tone | Channel | Sound |
|---|---|---|---|
| 5 Warning Sounds | Fire.A-ANG Emergency WA-U(Yelp) Ambulance PI-PO(Hi-low) Machinery Fault High Expansion |
||
| 5 Special Warning Sounds (1st Group) | Fire.A-ANG Abandon Alarm Machunery Fault High Expansion 7 Short PI. / 1 Long |
||
| 5 Melodies | Sweet Home For Elise Cuckoo's Waltz Piano Sonata Turkish March |
||
| 5 Alarms | Beep Intermittent Door Chime Phone Ring PI.PI.PI. Short Interval Tripping Beat |
||
| 5 Customizable voices |
