SH Series
Copied to clipboard

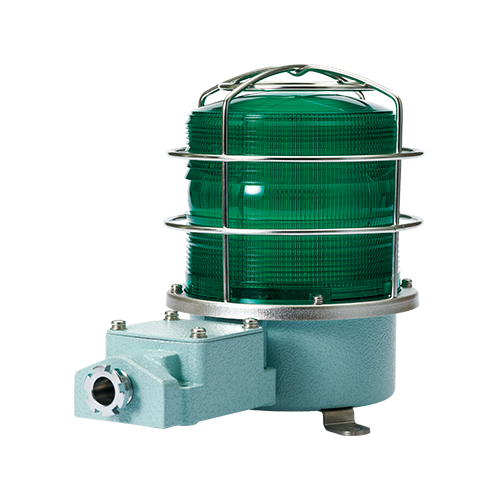

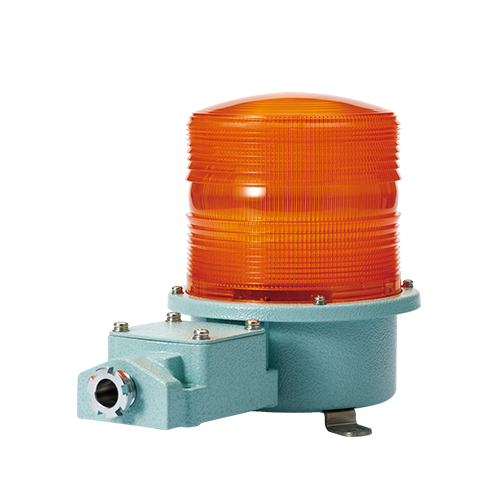

SH2TS
Weatherproof Xe
- Voltage
DC:12V-24V│AC:110V,220V
- Dimension
Lens Diameter : Ø138 │Height : 198 │Length : 250
- Materials
Lentille-PC │Boîtier-Al
- Protection rating
IP66
- Certificate
※ Please refer to technical information page for detailed specification including measurement.
(PDF Viewer, PDF Download, Auto-CAD)
Product Feature
Product Feature- Aluminum housing and polycarbonate lens material provides excellent impact resistance under seismic conditions
- Excellent hermetic structure that blocks water and dust
- Terminals located inside the terminal box
- Convenient lamp change with connector type connection structure
- Flashing rate : 60-80 flashes/min
- Standard housing color : MUNSELL No. 7.5BG 7/2
- Materials : Lens-PC, Housing-Al, Protection cage-STS316L, Bracket-STS316L
- Ambient operation temperature : -30°C to +50°C
- Cable entry : 1/2" PF
- Protection rating : IP66
- Certificates : CE
Product Specifications
| Model number | Voltage | Current | Bulb | Certificates | Color | ||
|---|---|---|---|---|---|---|---|
| Spec | Standard | Parts no | |||||
| SH2TS SH2TSP | DC12V~24V | Max.1.3A | 200V-550V | EUB0641-1A(G) U type | 48 | |  R-Red A-Amber G-Green B-Blue |
| AC110V | 160mA | ||||||
| AC220V | 140mA | ||||||
※ CE compliant: DC12V~24V
