SN/SEHN Series
Copied to clipboard

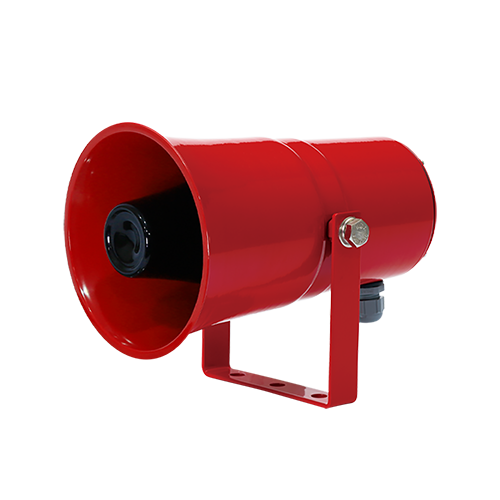

SEHN25
- Product Feature
15 sons intégrés (Max.115dB at 1m), 5 voix définies par l'utilisateur (99-112dB at 1m)
- Voltage
DC:12V,24V│AC:110V,220V
- Dimension
Horn Diameter : Ø158mm │Length : 238
- Materials
Boîtier-Steel
- Protection rating
IP55
※ Please refer to technical information page for detailed specification including measurement.
(PDF Viewer, PDF Download, Auto-CAD)
Product Feature
Product Feature- Steel housing provides excellent vibration and shock resistance under seismic conditions
- A variety of sound selections between warning sounds, alarm sounds, melodies and voice messages to fit your sophisticated application needs
- Can adjust sound volume with the switch built inside the unit
- Materials : Housing-Steel, Horn housing -Steel
- Housing standard color : Red
- Ambient operating temperature : -25°C to +50°C
- Protection rating : IP55, Suitable for outdoor installation
Product Specifications
Model number | Voltage | Current | Sound pattern and volume | Certificates | Weight |
|---|---|---|---|---|---|
| SEHN25 | DC12V | 2.2A | ·WS-5 Warning sounds: Max.115dB ·WM-5 Melodies: Max.115dB ·WA-5 Alarms: Max.113dB ·WV-5 Customizable sounds: 99-112dB | - | 0.91kg |
| DC24V | 1A | ||||
| AC110V | 220mA | 1.06kg | |||
| AC220V | 110mA |
※ Max.built-in volume feature is based on WS, WP-Ch1 / WM-Ch5 / WA-Ch2.
※ In case of customized WV 5 tone type, there may be difference of volume depending on user’s audio file type.
Sound Tone Combination of Standard Product
| Sound Category | Sound Tone | Channel | Sound |
|---|---|---|---|
| 5 Warning Sounds | Fire.A-ANG Emergency WA-U(Yelp) Ambulance PI-PO(Hi-low) Machinery Fault High Expansion |
||
| 5 Melodies | Sweet Home For Elise Cuckoo's Waltz Piano Sonata Turkish March |
||
| 5 Alarms | Beep Intermittent Door Chime Phone Ring PI.PI.PI. Short Interval Tripping Beat |
||
| 5 Customizable voices |
