S60AD/QAD Series
Copied to clipboard

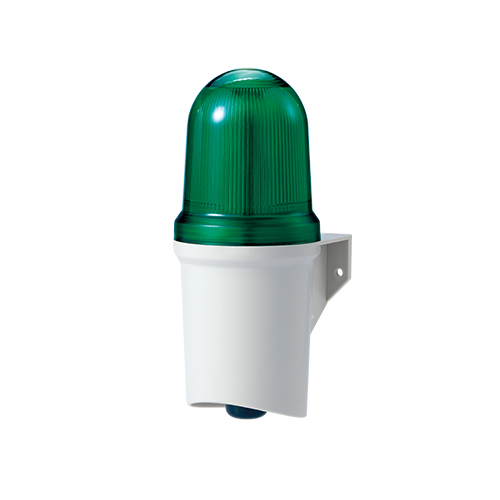

QAD80BZ
LED Steady/Flash & Strong Buzzer
Max.105dB
- Product Feature
Sirène(Max.105dB at 1m)
- Voltage
DC:12V,24V
- Dimension
Lens Diameter : │Ø80(Approx.) │Height : 198 │Depth : 93
- Materials
Lentille-PC │Boîtier-ABS
- Protection rating
IP65
- Certificate
※ Please refer to technical information page for detailed specification including measurement.
(PDF Viewer, PDF Download, Auto-CAD)
Product Feature
Product Feature- Combination of warning light and horn allow for both visual and audible signal transmission at once
- Built-in high volume buzzer type
- Flashing rate : 60-80/min(Built-in Steady-Flash selection switch)
- Ambient operating temperature : -30°C to +50°C
- Compliant with RoHS directive
Product Specifications
| Model number | Voltage | Current | Sound Pattern and Volume | Certificates | Weight | Color |
|---|---|---|---|---|---|---|
| QAD80BZ | DC12V | 550mA | · Buzzer Volume : Max.105dB | | 0.75kg |  R-Red A-Amber G-Green B-Blue |
| DC24V | 300mA | 0.75kg |
※ UL Listed: DC24V
