Q Series
Copied to clipboard

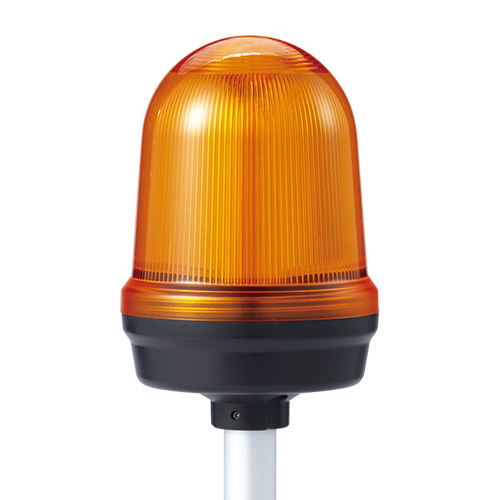

Q125LP
LED Steady/Flashing Signal Light
Max.80dB
- Product Feature
Buzzer d'alarme au volume fixe (Max. 80dB at 1m) : disponible en option
- Voltage
DC:12V-24V│AC:110V-220V
- Dimension
Lens Diameter : │Ø125mm(Approx.) │Height : 313
- Materials
Lentille-PC │Boîtier-ABS │Pole-Al
- Protection rating
IP65
- Certificate
※ Please refer to technical information page for detailed specification including measurement.
(PDF Viewer, PDF Download, Auto-CAD)
Product Feature
Product Feature- Standard-sized signal lights of Ø125mm with attractive appearance
- Pole mount type
- Selectable mounting bracket available depending on the installation requirements
- Shock and vibration-resistant, maintenance reduced with long-lasting energy-efficient LED light bulbs
- Materials : Lens-PC, Housing-ABS
- Features high visibility by applying a special diffusive lens and direct LED light distribution system
- Built-in buzzer available (Volume : Max. 80dB at 1m)
- Built-in switches for steady and flashing light function mode
- Flashing rate : 60-80 flashes/min
- Ambient operating temperature : -30°C to +50°C
- Protection rating : IP65
- Certificates : CE Compliant, UL Listed
- Compliant with RoHS directive
Product Specifications
| Model number | Voltage | Current | Certificates | Weight | Color |
|---|---|---|---|---|---|
| Q125LP | DC12V-24V | Max.270mA | | Q125L-0.34kg Q125LW-0.76kg Q125LP-1.28kg (Weight above include QZ24) |  R-Red A-Amber G-Green B-Blue |
| AC110V-220V | Max.80mA |
ㆍVarious mounting options are available
※ DC type model has a free-voltage range of 10V-30V.
※ AC type model has a free-voltage range of 100V-240V.
※ UL Listed: DC12V-24V
