Buzzer module
Copied to clipboard
MG70-HBZ
- Product Feature
High-volume buzzer module
- Voltage
DC:24V
- Dimension
Ø70x50
- Materials
ABS
- Certificate
※ Please refer to technical information page for detailed specification including measurement.
(PDF Viewer, PDF Download, Auto-CAD)
Product Feature
Product Feature- High volume buzzer module for modular LED tower light

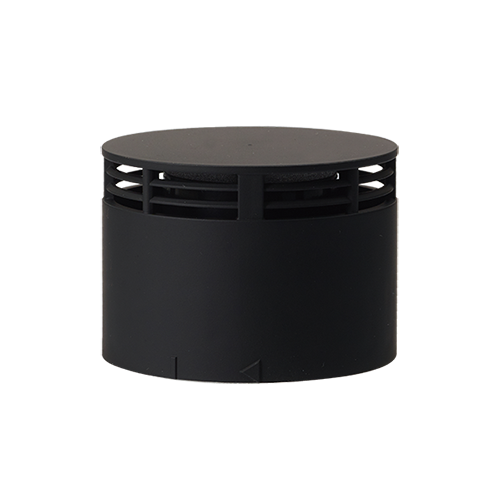

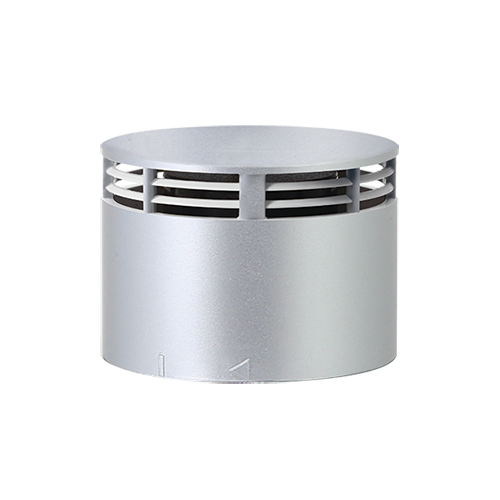

- Ivory/Silver/Black options are available in accordance with customers' preference
- Shift locking design realizes assembly and disassembly without additional tools
- Ambient operating temperature : -30℃ ~ +50℃
- Compliant with RoHS directive
Product Specifications
| Model number | Color | Voltage | Current | Dimension | Materials | Volume(dB) | Weight | Certificates |
|---|---|---|---|---|---|---|---|---|
| MG70-HBZ-24 | Ivory | DC24V | 90mA | Ø70x50 | ABS | Max.100dB | 0.07kg | |
| MG70-HBZ-24-SV | Silver | DC24V | 90mA | |||||
| MG70-HBZ-24-BK | Black | DC24V | 90mA |
※ UL listed silver housing model is optionally provided
