Dispositivo de señalización iniciado por teléfono
Copied to clipboard

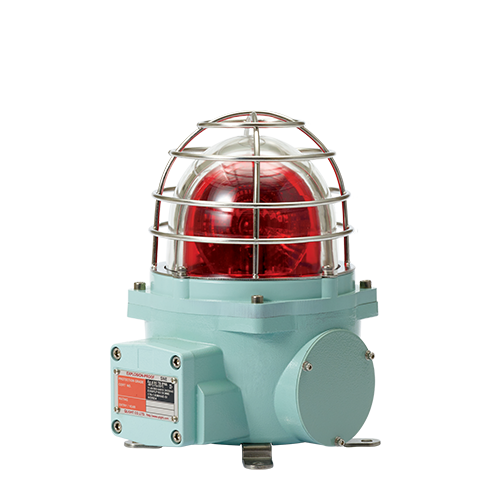

SNE-TI
- Voltage
DC:12V,24V│AC:120V,230V
- Dimension
Cage Diameter : Ø152 │Height : 238 │Length : 182.5
- Materials
Lens-Tempered glass │Housing-Al
- Protection rating
Ex db IIC T6 Gb IP66│Ex db op is IIC T6 Gb (with LED)
- Certificate
※ Please refer to technical information page for detailed specification including measurement.
(PDF Viewer, PDF Download, Auto-CAD)
Product Feature
Product Feature- Light weight and compact explosion proof warning lights with a variety of light source selections from bulb, LED, and xenon lamp
- Telephone Initiated Signal beacon triggers built-in alarm sound that is activated by 25Hz Telephone Ring Signal
- Highly noticeable Telephone alarm in noisy environment
- Telephone line(2 LINE) is connected to PSTN telephone line
- Aluminum housing provides excellent durability
- Fully enclosed structure with protection rating of IP66
- Integrated housing and terminal box model
- Rated voltage of Telephone line stand-by : 45VDC to 55VDC
- Rated voltage of Telephone line in operational : 95VDC to 130VDC
- Excellent signal light diffusion effect with multi-faced reflector
- Revolving speed : 120-140RPM
- Housing standard color : MUNSELL No. 7.5BG 7/2
- Cable entry : 1/2″ NPT
- Materials : Lens-Tempered glass, Inner lens-PC, housing-Al, Protection cage-STS316L, Reflector-PC, Reflector-Heat resistant ABS, Bracket-STS316L
- Certificates : IECEx, ATEX
- Protection rating
IECEx - Ex db IIC T6 Gb, Ex db op is IIC T6 Gb, IP66
ATEX -
II2G Ex db IIC T6 Gb, Ex db op is IIC T6 Gb, IP66 - Ambient operating temperature : -40°C ≤ Tamb ≤ +60°C
II2G Ex db IIC T6 Gb, Ex db op is IIC T6 Gb, IP66Product Specifications
| Model number | Voltage | Voltage | Bulb | Certificates | Weight | Color | ||
|---|---|---|---|---|---|---|---|---|
| Spec | Standard | Parts no | ||||||
| SNE-TI | DC12V | 1.39A | 12V15W | G23 15S | 17 | | 3.25kg |  R-Red A-Amber G-Green B-Blue |
| DC24V | 800mA | 24V15W | G23 15S | 18 | ||||
| AC120V | 180mA | 12V15W | G23 15S | 17 | 3.95kg | |||
| AC230V | 95mA | 12V15W | G23 15S | 17 | ||||
