SM Series
Copied to clipboard

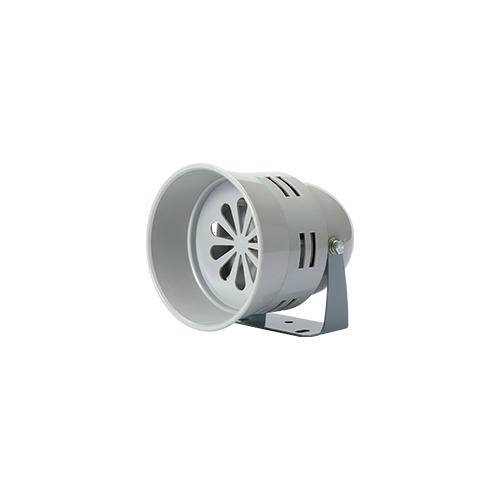

SM40
Max.116dB
- Product Feature
Sirena de auto (Max. 116dB at 1m)
- Voltage
DC:12V,24V│AC:110V,220V
- Dimension
Diameter : Ø128 │Length : 162
- Materials
Carcasa-ABS
※ Please refer to technical information page for detailed specification including measurement.
(PDF Viewer, PDF Download, Auto-CAD)
Product Feature
Product Feature- Ø100mm compact structure with 116dB sound output
- Motor RPM : 7,000RPM
- Housing standard color : Gray
- Materials : ABS
- Insulation resistance : 100MΩ(at 500 VDC)
- Power consumption : 80W
- Ambient operation temperature : -25°C to +50°C
Product Specifications
| Model number | Volume | Voltage | Current | Certificates | Weight | Rated time |
|---|---|---|---|---|---|---|
| SM40 | Max.116dB | DC12V | 4.5A | - | 0.53kg | 10 mins |
| DC24V | 3A | 0.53kg | ||||
| AC110V | 1A | 0.68kg | ||||
| AC220V | 730mA | 0.68kg |
