EL Series
Copied to clipboard

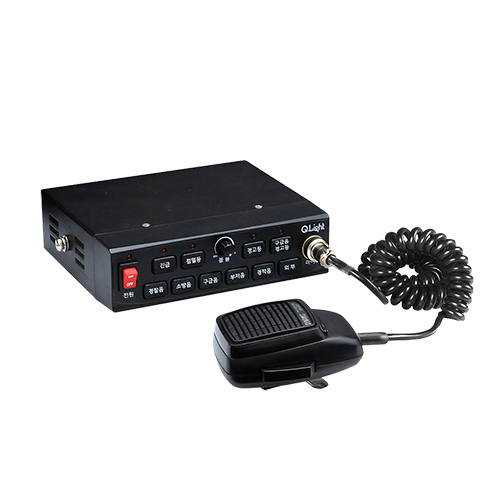

SAMP
- Product Feature
AMP controlable
- Voltage
DC:12V,24V
- Dimension
Width : 175 │Height : 73 │Length : 165
- Materials
Carcasa-Al
※ Please refer to technical information page for detailed specification including measurement.
(PDF Viewer, PDF Download, Auto-CAD)
Product Feature
Product Feature- Simple linkage between sound signal and warning lights
- Clear and stable sound signal
- Built-in switch for emergency voice on the microphone
- Commonly applicable for ELML
Product Specifications
| Model number | Voltage | Current | Sound pattern | Frequency/Repeat time | Certificates | Weight |
|---|---|---|---|---|---|---|
| SAMP | DC12V DC24V | 5.2A 2.5A | Fire | 300-700Hz / 140cycle | - | 1.09kg |
| Emergency | 350-750Hz / 14cycle | |||||
| Ambulance | 610-690Hz / 50cycle | |||||
| Buzzer | 2,200Hz | |||||
| Horn sound | 595Hz-1,040Hz |
