S Series (Ø50-80)
Copied to clipboard

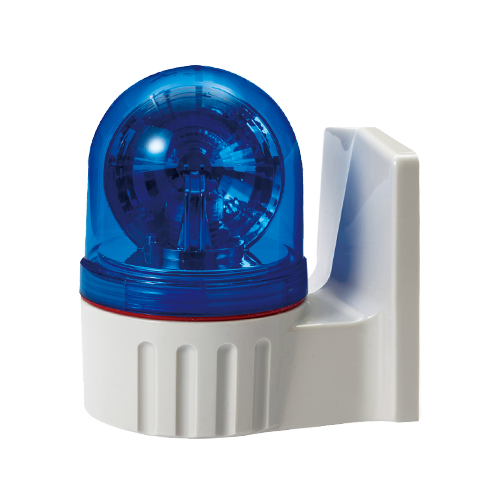

S80ADR
Max.90dB
- Product Feature
Tipo zumbador con volumen fijo (Max. 90dB at 1m) : disponible opcionalmente
- Voltage
DC:12V,24V│AC:110V,220V
- Dimension
Lens Diameter : │Ø80(Approx.) │Height : 125 │Depth : 113
- Materials
Lente-AS │Carcasa-ABS
- Protection rating
IP44
※ Please refer to technical information page for detailed specification including measurement.
(PDF Viewer, PDF Download, Auto-CAD)
Product Feature
Product Feature- Equipped wall mount allows for easy assembly. Additional mounting brackets not required
- Terminal block designed inside the side mount bracket enables easy wiring
- Built-in buzzer available (Volume : Max. 90dB at 1m)
- Revolving speed : 120-140RPM
- Materials : Lens-AS, Housing-ABS, Reflector-Heat resistant ABS
- Ambient operating temperature : -20°C to +50°C
- Protection rating : IP44
- Compliant with RoHS directive
Product Specifications
| Model number | Voltage | Current | Certificates | Weight | Color |
|---|---|---|---|---|---|
| S80ADR | DC12V | 180mA | - | 0.34kg |  R-Red A-Amber G-Green B-Blue |
| DC24V | 125mA | 0.34kg | |||
| AC110V | 35mA | 0.49kg | |||
| AC220V | 25mA | 0.49kg |
