S60AD/QAD Series
Copied to clipboard
S60ADS
Max.95dB
- Product Feature
Zumbador alto (Max. 95dB at 1m)
- Voltage
DC:12V,24V│AC:110V,220V
- Dimension
Lens Diameter : │Ø60(Approx.) │Height : 233 │Depth : 86
- Materials
Lente-AS │Carcasa-ABS
- Protection rating
IP54
- Certificate
※ Please refer to technical information page for detailed specification including measurement.
(PDF Viewer, PDF Download, Auto-CAD)
Product Feature

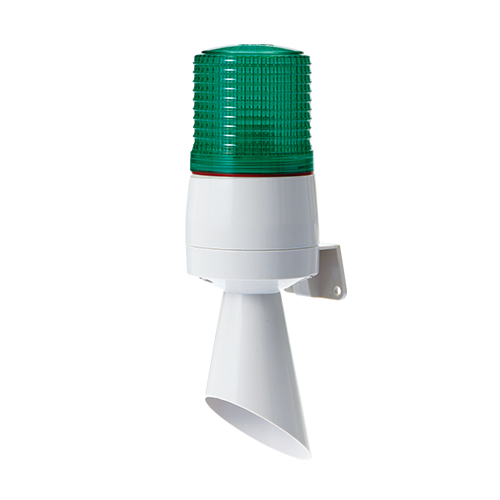

Product Feature- Ø60mm warning light with high volume built-in buzzer in a vertical configuration
- Cone-shaped horn helps diffuse sound to generate clear and distinctive sound signals
- Suitable for applications that require downward audible signals in elevated locations
- Buzzer sound volume (Max. 95dB at 1m)
- Flashing rate : 60-80 flashes/min
- Materials : Lens-AS, Body-ABS
- Ambient operating temperature : -30°C to +50°C
- Protection Rating : IP54
- Certificates : CE Compliant
Product Specifications
| Model number | Voltage | Current | Certificates | Weight | Color |
|---|---|---|---|---|---|
| S60ADS | DC12V | 550mA | | 0.29kg |  R-Red A-Amber G-Green B-Blue |
| DC24V | 285mA | 0.29kg | |||
| AC110V | 85mA | 0.27kg | |||
| AC220V | 75mA | 0.27kg |
Sound Tone Combination of Standard Product
| Sound Category | Sound Tone | Voltage | Sound |
|---|---|---|---|
| 1 Buzzer Sound | Turu~ Continuous ※Intermittent sound is also available |
AC DC |
