S Series (Ø100-125)
Copied to clipboard
S125U
Max.90dB
- Product Feature
Tipo zumbador con volumen fijo (Max. 90dB at 1m) : disponible opcionalmente
- Voltage
DC:12V,24V│AC:110V,220V
- Dimension
Lens Diameter : │Ø125(Approx.) │Height : 158
- Materials
Lente-AS │Carcasa-ABS
- Protection rating
IP44
- Certificate
※ Please refer to technical information page for detailed specification including measurement.
(PDF Viewer, PDF Download, Auto-CAD)
Product Feature

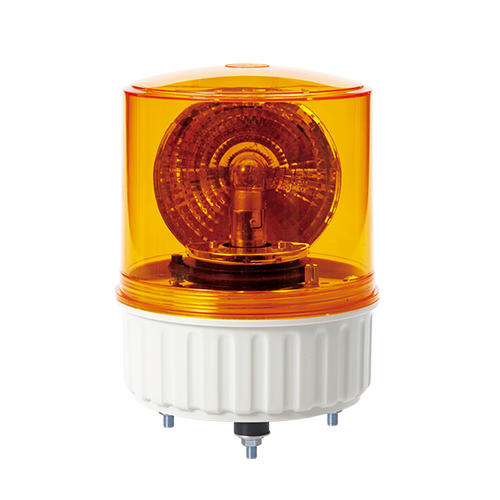

Product Feature- Ø125mm standard-sized bulb revolving warning light
- Adopts a special power transmission system that reduces noise and wear
- Built-in buzzer available (Volume : Max. 90dB at 1m)
- Revolving speed : 120-140RPM
- Materials : Lens-AS, Housing-ABS, Reflector-Heat resistant ABS
- Ambient operating temperature : -20°C to +50°C
- Protection rating : IP44
Product Specifications
| Model number | Voltage | Current | Bulb | Certificates | Weight | Color | ||
|---|---|---|---|---|---|---|---|---|
| Spec | Standard | Parts no | ||||||
| S125U | DC12V | 965mA | 12V10W | T16x35 15S | 9 | | 0.41kg |  R-Red A-Amber G-Green B-Blue |
| DC24V | 565mA | 24V10W | T16x35 15S | 10 | 0.41kg | |||
| AC110V | 130mA | 12V10W | T16x35 15S | 9 | 0.65kg | |||
| AC220V | 65mA | 12V10W | T16x35 15S | 9 | 0.65kg | |||
ㆍProtection rating: IP44
※ CE Compliant: DC12V, DC24V
