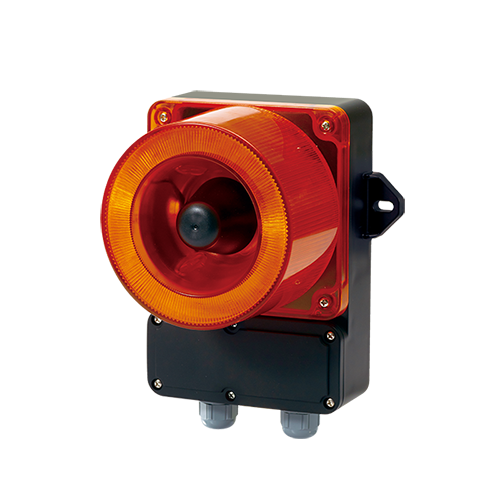

Dispositivo de señalización iniciado por teléfono
Copied to clipboard
QWCD35-TI
- Product Feature
31 Built-in Sounds (Max.115dB at 1m)
- Voltage
DC:12V-24V│AC:110V-220V
- Dimension
□136×195.5 │Depth : 126
- Materials
Horn-PC │Housing-PC+ABS
- Protection rating
IP66
※ Please refer to technical information page for detailed specification including measurement.
(PDF Viewer, PDF Download, Auto-CAD)
Product Feature
Product Feature- Telephone initiated signaling device that activates a built-in sounder which is triggered by 25Hz Telephone Ring Signal
- Highly noticeable Telephone alarm in noisy environment
- Telephone line(2 line) is connected to PSTN cable
- 31 available tones that can be selected for a variety of environments
- 31 pre-recorded tones available via binary input
- Suitable for use in environments that require a tight seal and superior dust protection rated IP66
- Easy wiring though external terminal box
- Rated power when telephone lines are not in use: 45VDC - 55VDC
- Rated power when telephone rings : 95VDC - 130VDC
- Flashing rate : 60-80 flashes/min
- Ambient operating temperature :
-30°C to +50°C(Standard)
-50°C to +50°C(Low temperature type only DC) - Compliant with RoHS directive
Product Specifications
| Model number | Voltage | Current | Sound Pattern and Volume | Weight | Color |
|---|---|---|---|---|---|
| QWCD50-TI Terminal box equipped type Built-in sound type | DC12V-24V | Max.1.35A | • Binary Input : 31Ch • Warning Sounds : Max.115dB (Based on Ch31) | 1.30kg |  R-Red A-Amber G-Green B-Blue |
| AC110V-220V | Max.350mA | 1.35kg |
