Zumbador
Copied to clipboard
MG50-BZ
- Product Feature
Standard buzzer module
- Voltage
DC:24V
- Dimension
Ø50x50
- Materials
ABS
- Protection rating
Non-Waterproof
- Certificate
※ Please refer to technical information page for detailed specification including measurement.
(PDF Viewer, PDF Download, Auto-CAD)

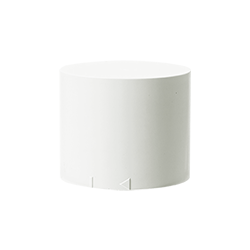

Product Feature
Product Feature- Standard buzzer module for modular LED tower light
- Ivory/Silver/Black options are available in accordance with customers' preference
- Shift locking design realizes assembly and disassembly without additional tools
- Ambient operating temperature : -30℃ ~ +50℃
- Compliant with RoHS directive
Product Specifications
| Model number | Color | Voltage | Current | Dimension | Materials | Volume(dB) | Weight | Certificates |
|---|---|---|---|---|---|---|---|---|
| MG50-BZ-24 | Ivory | DC24V | 90mA | Ø50x50 | ABS | Max.90dB | 0.05kg | |
| MG50-BZ-24-SV | Silver | DC24V | 90mA | 0.05kg | ||||
| MG50-BZ-24-BK | Black | DC24V | 90mA | 0.05kg |
※ UL listed silver housing model is optionally provided
