MFL Series
Copied to clipboard

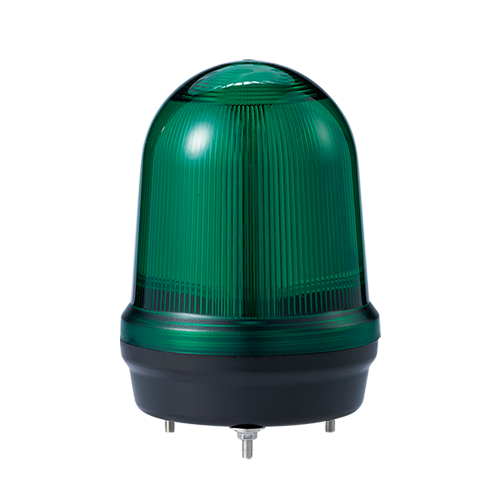

MFL125
LED Signal Light
Max.80dB
- Product Feature
Luz de señal de LED multifunción Tipo zumbador con volumen fijo (Max. 80dB at 1m) : disponible opcionalmente
- Voltage
DC:12V-24V│AC:110V-220V
- Dimension
Lens Diameter : │Ø125(Approx.) │Height : 155
- Materials
Lente-PC │Carcasa-ABS
- Protection rating
IP65
- Certificate
※ Please refer to technical information page for detailed specification including measurement.
(PDF Viewer, PDF Download, Auto-CAD)
Product Feature
Product Feature- Product has multi functions of LED Steady/Flashing, strobe, and simulated revolving
- Operating options with switches inside product or external connect
- Shock and vibration-resistant, maintenance reduced with long-lasting energyefficient LED light bulb
- Flashing type(LF) flashing rates : 60-80 flashes/min
- Strobe type(LS) flashing rates : 70-80 flashes/min
- Simulated revolving type(LR) flashing rates : 120-140 flashes/min
- Ambient operating temperature : -30°C to +50°C
- Compliant with RoHS directive
Product Specifications
| Model number | Voltage | Current | Certificates | Weight | Color |
|---|---|---|---|---|---|
| MFL125 | DC12V-24V | Max.118mA | | 0.52kg |  R-Red A-Amber G-Green B-Blue |
| AC110V-220V | Max.90mA | 0.92kg |
※ UL Listed: DC12V-24V
※ DC type model has a free-voltage range of 10V-30V.
※ AC type model has a free-voltage range of 100V-240V.
