ST-ETN Series
Copied to clipboard
ST80MEL-ETN
Max.90dB
- Product Feature
Buzzer sounds (Max.90dB at 1m) Warning sounds (Max.85dB at 1m)
- Voltage
DC:12V,24V│AC:110V-220V
- Dimension
Diameter : Ø80mm │Height : 230-390
- Materials
Lens-AS │Housing-ABS
- Protection rating
IP23
※ Please refer to technical information page for detailed specification including measurement.
(PDF Viewer, PDF Download, Auto-CAD)
Product Feature
Features
- Ideal solution for building smart factories with state of the art technology
- Local Area Network(LAN) type product supports both HTTP protocol(Web browser) and TCP/IP protocol which is controlled by PC application program.
- LED signal tower light is an IOT product that can be controlled remotely.
Main characteristics
- Provides MS Runtime libraries for developers to utilize in various PC applications
- Possible remote monitoring and controlling of equipment by PC application

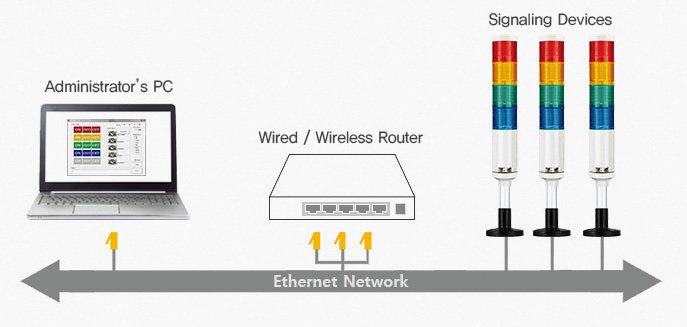

- LED signal tower light controlled by PC application program though the network
- LED Module Standard Operation : 2 layers will operate at the same time
- Ethernet cable and power cable are provided with the product
- Communication speed : 10M/ half duplex method
Wiring Instructions
- Apply properly rated voltage through the POWER CABLE
- Connect the RJ45 connector of the UTP cable into the PC’s Ethernet port or router
- External power line : UL1015 AWG18(0.75sq)×2C 400mm
- Power plug will be provided in case of AC type
- UTP cable : Category 5 cable
- DC type : Black output line is negative(-).
Operational environment
- OS Support(32bit / 64bit) : Windows XP, Win 7, Win 10
- Library Support : VC++, VB, Delphi(32bit only), C#(64bit only)
Product Specifications
| Model number | Layer | Voltage | Certificate | Color |
|---|---|---|---|---|
| ST80MEL-ETN | 1 | DC12V | - |  R-Red |
| 2 | DC12V DC24V AC110V-220V | R-Red G-Green | ||
| 3 | DC12V DC24V AC110V-220V | R-Red A-Amber G-Green | ||
| 4 | DC12V DC24V AC110V-220V | R-Red A-Amber G-Green B-Blue | ||
| 5 | DC12V DC24V AC110V-220V | R-Red A-Amber G-Green B-Blue W-White |
Light source/signal sound current(based on 1 layer)
Voltage | DC12V | DC24V | AC110V~220V |
|---|---|---|---|
Light source current(1 layer) | 260mA | 180mA | Max.70mA |
| Signal sound current | 350mA | 230mA | Max.85mA |
Sound Tone Combination of Standard Product
| Sound Category | Sound Tone | Channel | Sound |
|---|---|---|---|
| 5 Warning Sounds | Fire.A-ANG Emergency WA-U(Yelp) Ambulance PI-PO(Hi-low) Machinery Fault High Expansion |
||
| 5 Melodies | Sweet Home For Elise Cuckoo's Waltz Piano Sonata Turkish March |
||
| 5 Alarms | Beep Intermittent Door Chime Phone Ring PI.PI.PI. Short Interval Tripping Beat |
