ST Series
Copied to clipboard

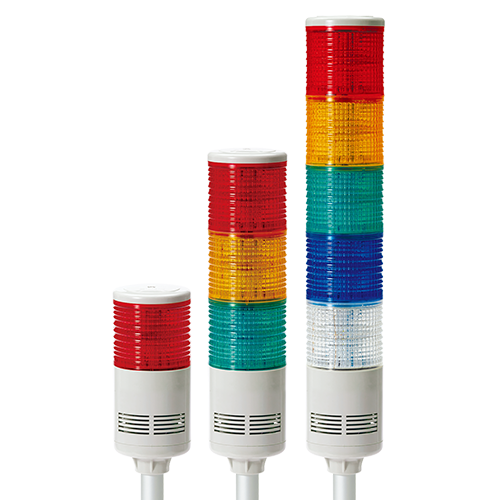

ST80L-W
LED Tower Light with Signal Sound
Max.85dB
- Product Feature
Sounder volume fixed type (Max. 85dB at 1m)
- Voltage
DC:12V,24V│AC:110V,220V,12V,24V
- Dimension
Diameter : Ø80mm │Height : │317-597
- Materials
Lens-AS │Housing-ABS │Pole-Al
- Protection rating
IP23
※ Please refer to technical information page for detailed specification including measurement.
(PDF Viewer, PDF Download, Auto-CAD)
Product Feature
Product Feature- Ø80mm pole mount, LED steady/flashing tower lights
- Long product lifetime of over 20,000hours with the application of a high intensity LED light source
- A variety of mounting bracket selections for the pole mount type to fit your location and mounting needs
- Built-in alarm available (Volume : Max. 85dB at 1m/ Speaker output type)
- Can select from 5 warning sounds, 5 alarms, 5 melodies to fit your application needs
- Flashing rate : 60-80 flashes/min
- Customized color arrangement available (LED light distribution system and lens is integrated into a combined structure)
- Materials : Lens-AS, Housing-ABS, Pole-Al
- Ambient operating temperature: -30°C to +60°C
- Protection rating : IP23
- Compliant with RoHS directive
Product Specifications
| Model number | Layer | Voltage | Certificates | Weight | Color |
|---|---|---|---|---|---|
ST80L-WS Built-in 5 Warning sounds, Steady ST80L-WM Built-in 5 Melodies, Steady ST80L-WA Built-in 5 Alarms, Steady ST80LF-WS Built-in 5 Warning sounds, Steady/Flashing ST80LF-WM Built-in 5 Melodies, Steady/Flashing ST80LF-WA Built-in 5 Alarms, Steady/Flashing | 1 | AC/DC12V AC/DC24V AC110V AC220V | - | 0.62kg 0.62kg 0.86kg 0.86kg |  R-Red |
| 2 | AC/DC12V AC/DC24V AC110V AC220V | 0.77kg 0.77kg 1.00kg 1.00kg | R-Red G-Green | ||
| 3 | AC/DC12V AC/DC24V AC110V AC220V | 0.91kg 0.91kg 1.14kg 1.14kg | R-Red A-Amber G-Green | ||
| 4 | AC/DC12V AC/DC24V AC110V AC220V | 1.05kg 1.05kg 1.29kg 1.29kg | R-Red A-Amber G-Green B-Blue | ||
| 5 | AC/DC12V AC/DC24V AC110V AC220V | 1.19kg 1.19kg 1.14kg 1.14kg | R-Red A-Amber G-Green B-Blue W-White |
Light source/buzzer current(based on 1 layer)
Voltage | AC/DC12V | AC/DC24V | AC110V | AC220V |
|---|---|---|---|---|
Light source current(1 layer) | 160mA | 95mA | 70mA | 55mA |
| Buzzer current | 40mA | 75mA | 50mA | 40mA |
| Signal sound current | 200mA(DC12V) | 135mA(DC24V) | 50mA | 35mA |
Sound Tone Combination of Standard Product
| Sound Category | Sound Tone | Channel | Sound |
|---|---|---|---|
| 5 Warning Sounds | Fire.A-ANG Emergency WA-U(Yelp) Ambulance PI-PO(Hi-low) Machinery Fault High Expansion |
||
| 5 Melodies | Sweet Home For Elise Cuckoo's Waltz Piano Sonata Turkish March |
||
| 5 Alarms | Beep Intermittent Door Chime Phone Ring PI.PI.PI. Short Interval Tripping Beat |
