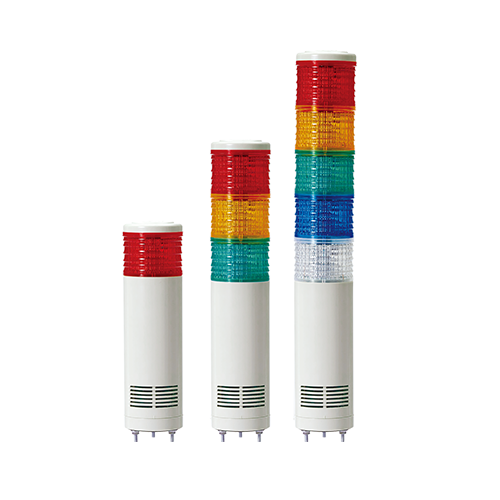

ST56MEL-W
LED Tower Light with Signal Sound
Max.85dB
- Product Feature
Sounder volume fixed type (Max. 85dB at 1m)
- Voltage
DC:12V,24V│AC:110V,220V,12V,24V
- Dimension
Diameter : Ø56mm │Height : │127-352
- Materials
Lens-AS │Housing-ABS
- Protection rating
IP23
- Certificate
※ Please refer to technical information page for detailed specification including measurement.
(PDF Viewer, PDF Download, Auto-CAD)
Product Feature
Product Feature- Ø56mm direct mount, LED steady/flashing tower lights
- Long product lifetime of over 20,000hours with the application of a high intensity LED light source
- Built-in alarm available (Volume : Max. 85dB at 1m/ Speaker output type)
- Can select from 5 warning sounds, 5 alarms, 5 melodies to fit your application needs
- Flashing rate : 60-80 flashes/min
- Customized color arrangement available (LED light distribution system and lens is integrated into a combined structure)
- Materials : Lens-AS, Housing-ABS
- Ambient operating temperature: -30°C to +60°C
- Protection rating : IP23
- Certificates : CE Compliant
- Compliant with RoHS directive
Product Specifications
| Model number | Layer | Voltage | Certificates | Weight | Color |
|---|---|---|---|---|---|
ST56MEL-WS Built-in 5 Warning sounds, Steady ST56MEL-WM Built-in 5 Melodies, Steady ST56MEL-WA Built-in 5 Alarms, Steady ST56MELF-WS Built-in 5 Warning sounds, Steady/Flashing ST56MELF-WM Built-in 5 Melodies, Steady/Flashing ST56MELF-WA Built-in 5 Alarms, Steady/Flashing | 1 | AC/DC12V AC/DC24V AC110V AC220V | | 0.26kg 0.26kg 0.42kg 0.42kg |  R-Red |
| 2 | AC/DC12V AC/DC24V AC110V AC220V | 0.32kg 0.32kg 0.48kg 0.48kg | R-Red G-Green | ||
| 3 | AC/DC12V AC/DC24V AC110V AC220V | 0.37kg 0.37kg 0.54kg 0.54kg | R-Red A-Amber G-Green | ||
| 4 | AC/DC12V AC/DC24V AC110V AC220V | 0.43kg 0.43kg 0.59kg 0.59kg | R-Red A-Amber G-Green B-Blue | ||
| 5 | AC/DC12V AC/DC24V AC110V AC220V | 0.49kg 0.49kg 0.65kg 0.65kg | R-Red A-Amber G-Green B-Blue W-White |
※ CE Compliant: DC12V, DC24V
Light source/buzzer current(based on 1 layer)
Voltage | AC/DC12V | AC/DC24V | AC110V | AC220V |
|---|---|---|---|---|
Light source current(1 layer) | 60mA | 60mA | 50mA | 40mA |
| Buzzer current | 40mA | 75mA | 50mA | 40mA |
| Signal sound current | 200mA(DC12V) | 135mA(DC24V) | 50mA | 35mA |
Sound Tone Combination of Standard Product
| Sound Category | Sound Tone | Channel | Sound |
|---|---|---|---|
| 5 Warning Sounds | Fire.A-ANG Emergency WA-U(Yelp) Ambulance PI-PO(Hi-low) Machinery Fault High Expansion |
||
| 5 Melodies | Sweet Home For Elise Cuckoo's Waltz Piano Sonata Turkish March |
||
| 5 Alarms | Beep Intermittent Door Chime Phone Ring PI.PI.PI. Short Interval Tripping Beat |
