ST45ML

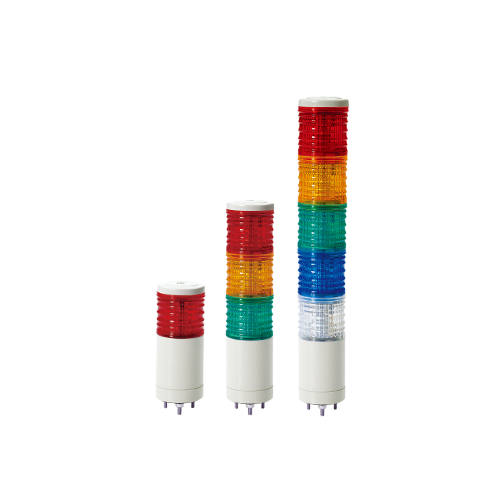

LED Steady/Flashing Tower Lights
Max.90dB
- Product Feature
Built-in buzzer type (Max. 90dB at 1m), Built-in alarm type (Max. 85dB at 1m)
- Voltage
DC:12V,24V│AC:110V,220V,12V,24V
- Dimension
Diameter : Ø45mm │Height : │106-358
- Materials
Lens-AS │Housing-ABS │Pole-Al
- Protection rating
IP44 (Standard)│IP23 (Buzzer type)
- Certificate
※ Please refer to technical information page for detailed specification including measurement.
(PDF Viewer, PDF Download, Auto-CAD)
Product Feature
Product Feature- LED steady/flashing tower lights
- Long product lifetime of over 20,000hours with the application of a high intensity LED light source
- Can select from size selections of Ø45mm, Ø56mm, and Ø80mm to fit your sophisticated application needs
- A variety of Mounting bracket selections for the pole mount type to fit your location and mounting needs
- Built-in alarm available: Can select from 5 warning sounds, 5 alarms, 5 melodies to fit your application needs
- Customized color arrangement available (LED light distribution system and lens is integrated into a combined structure)
- Standard model and built-in buzzer model can be used by selecting the specifications suitable for the operating environment
- Flashing rate : 60-80 flashes/min
- 24VDC UL listed model is optionally provided
- Compliant with RoHS directive
Product Specifications
| Model number | Layer | Voltage | Certificates | Weight | Color |
|---|---|---|---|---|---|
ST45ML Steady ST45ML-BZ Steady w/ built-in buzzer ST45ML-WS Steady/5 Warning sounds ST45ML-WM Steady/5 Melodies ST45ML-WA Steady/5 Alarms ST45MLF Steady/Flashing ST45MLF-BZ Steady/Flashing w/ built-in buzzer ST45MLF-WS Steady/Flashing/5 Warning sounds ST45MLF-WM Steady/Flashing/5 Melodies ST45MLF-WA Steady/Flashing/5 Alarms | 1 | AC/DC12V AC/DC24V AC110V AC220V | | 0.19kg 0.19kg 0.25kg 0.25kg |  R-Red |
| 2 | AC/DC12V AC/DC24V AC110V AC220V | 0.21kg 0.21kg 0.29kg 0.29kg | R-Red G-Green | ||
| 3 | AC/DC12V AC/DC24V AC110V AC220V | 0.25kg 0.25kg 0.34kg 0.34kg | R-Red A-Amber G-Green | ||
| 4 | AC/DC12V AC/DC24V AC110V AC220V | 0.30kg 0.30kg 0.38kg 0.38kg | R-Red A-Amber G-Green B-Blue | ||
| 5 | AC/DC12V AC/DC24V AC110V AC220V | 0.34kg 0.34kg 0.42kg 0.42kg | R-Red A-Amber G-Green B-Blue W-White |
※ CE Compliant: DC12V, DC24V, UL Listed: DC24V(Except sound types)
Light source/buzzer current(based on 1 layer)
Voltage | AC/DC12V | AC/DC24V | AC110V | AC220V |
|---|---|---|---|---|
Light source current(1 layer) | 40mA | 55mA | 45mA | 30mA |
| Buzzer current | 40mA | 75mA | 50mA | 35mA |
| Signal sound current | 200mA(DC12V) | 135mA(DC24V) | 50mA | 35mA |
Sound Tone Combination of Standard Product
| Sound Category | Sound Tone | Channel | Sound |
|---|---|---|---|
| 1 Buzzer Sound | Pi-- Pi-- slow |
||
| 2 Buzzer Sounds (Customized type) |
Pi--- Pi--- moderate Pi pi pi short |
