SNE Series
Copied to clipboard

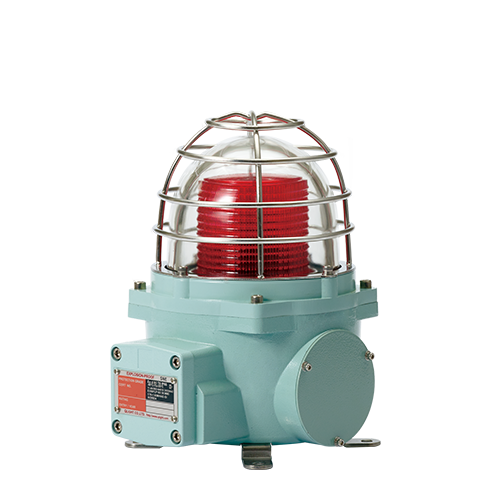

SNE-S
- Voltage
DC:12V-24V│AC:120V,230V
- Dimension
Cage Diameter : Ø152 │Height : 238 │Length : 183
- Materials
Lens-Tempered glass │Filter-PC │Housing-Al │Protection cage-STS316L │Reflector-PC │Reflector-Heat resistant ABS │Bracket-STS316L
- Protection rating
IP66
- Certificate
※ Please refer to technical information page for detailed specification including measurement.
(PDF Viewer, PDF Download, Auto-CAD)
Product Feature
Product Feature- Light weight and compact explosion proof signal beacon / light
- Lamp connector fastening structure allows for convenient lamp replacement
- Excellent long-distance visibility with strong flashing signal diffusion
- Aluminum housing provides excellent durability
- Fully enclosed structure with protection rating of IP66
- Integrated housing and terminal box model
- Flashing rate : 60-80 flashes/min
- Housing standard color : MUNSELL No. 7.5BG 7/2
- Cable entry : 1/2″ NPT
- Protection rating
IECEx - Ex db IIC T6 Gb, Ex db op is IIC T6 Gb
ATEX -
II2G Ex db IIC T6 Gb, Ex db op is IIC T6 Gb
KCs - Ex d IIC T6
NEPSI, CCC - Ex db IIC T6 Gb - Ambient operating temperature
-40°C ≤ Tamb ≤ +60°C
-40°C ≤ Tamb ≤ +55°C(KCs)
II2G Ex db IIC T6 Gb, Ex db op is IIC T6 GbProduct Specifications
| Model number | Voltage | Current | Xenon Lamp | Certificates | Weight | Color | ||
|---|---|---|---|---|---|---|---|---|
| Spec | Standard | Parts no | ||||||
| SNE-S | DC12V-24V | Max.390mA | 200V-350V | BGA2120-BBC I type | 47 | | 3.60kg |  R-Red A-Amber G-Green B-Blue |
| AC120V | 100mA | 4.25kg | ||||||
| AC230V | 60mA | 4.25kg | ||||||
※ Customization : 48VDC voltage product (excluding KCs)
