SM Series
Copied to clipboard

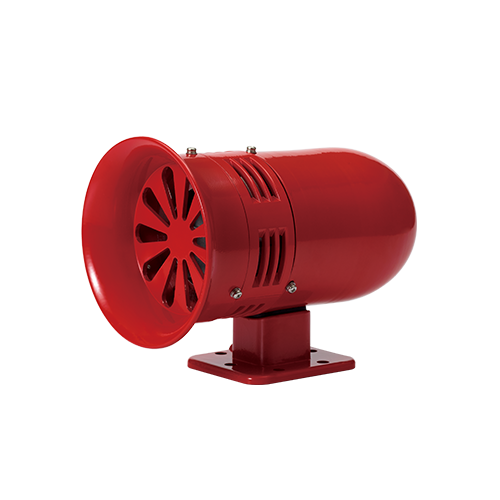

SM200
Max.120dB
- Product Feature
Motor Siren (Max.120dB at 1m)
- Voltage
DC:24V│AC:110V,220V
- Dimension
Diameter : Ø143 │Length : 231
- Materials
Housing-Steel
- Certificate
※ Please refer to technical information page for detailed specification including measurement.
(PDF Viewer, PDF Download, Auto-CAD)
Product Feature
Product Feature- Excellent durability and high volume are suitable for noisy environment
- Motor RPM : 7,200RPM
- Housing standard color : Red
- Materials : Steel/Al
- Insulation resistance : 100MΩ(at 500 VDC)
- Ambient operation temperature : -25°C to +50°C
- Certificates : CE Compliant
Product Specifications
| Model number | Volume | Voltage | Current | Certificates | Weight | Rated time |
|---|---|---|---|---|---|---|
| SM200 | Max.120dB | DC24V | 11A | | 2.19kg | 10 mins |
| AC110V | 2.85A | 2.55kg | ||||
| AC220V | 1.7A | 2.55kg |
