SH2T
SH2T

SH Series Copied to clipboard

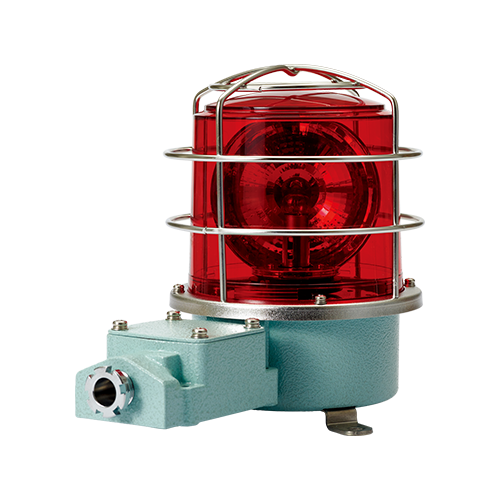

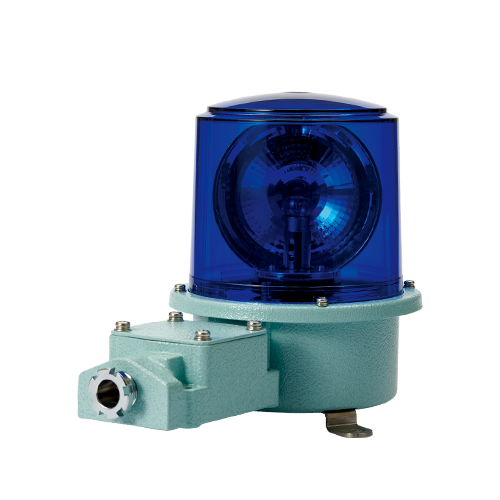

SH2T

Heavy Duty Bulb Rotating Signal Beacons for Marine and Heavy Industry Applications
Weatherproof Revolving Beacons / Visual Signal Alarms
Bulb Revolving TypeIP66-20℃ ~ +50℃
  • Voltage

    DC:12V,24VAC:110V,220V

  • Dimension

    Lens Diameter : Ø138 Height : 198 Length : 250

  • Materials

    Lens-PC Housing-Al

  • Protection rating

    IP66

  • Certificate

※ Please refer to technical information page for detailed specification including measurement.

(PDF Viewer, PDF Download, Auto-CAD)

  • Product Feature
  • Product Specifications
  • Download

Product Feature

Product Feature
  • Aluminum housing and polycarbonate lens material provides excellent impact resistance under seismic conditions
  • Excellent hermetic structure that blocks water and dust
  • Terminals located inside the terminal box
  • Excellent light diffusion effect with multi faced reflector
  • Adopts a special power transmission system that reduces noise and wear
  • Revolving speed : 120-140RPM
  • Standard housing color : MUNSELL No. 7.5BG 7/2
  • Materials : Lens-PC, Housing-Al, Protection cage-STS316L, Reflector-Heat resistant ABS, Bracket-STS316L
  • Ambient operation temperature : -20°C to +50°C
  • Standard housing color : MUNSELL No. 7.5BG 7/2
  • Cable entry :1/2″PF
  • Protection rating : IP66
  • Certificates : CE

  • Product Feature
  • Product Specifications
  • Download

Product Specifications

Model numberVoltageCurrentBulbCertificatesColor
SpecStandardParts no
SH2T

SH2TP
DC12V1.55A
12V15WG23 15S17

 R-Red
A-Amber
   G-Green
 B-Blue
DC24V850mA
24V15WG23 15S18
AC110V200mA
12V15WG23 15S17
AC220V100mA
12V15WG23 15S17

  • Product Feature
  • Product Specifications
  • Download

Download

※ If the PDF file does not display properly, please use [Adobe Reader], the official PDF viewer.
