SEWN30E

SEWN/SHDN Series Copied to clipboard

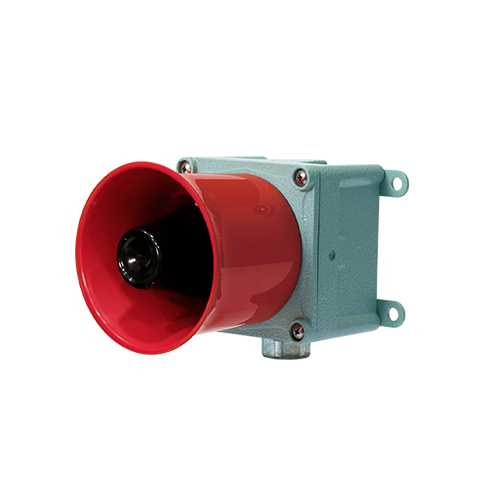

SEWN30E

Electronic Sounders for Vessels and Heavy Industrial Applications
Weatherproof Alarm Horns & Sirens / Audible Alarm
Max.114dB
IP66-30℃ ~ +50℃Horn114dBNPN-Transistor Type
  • Product Feature

    20 Built-in Sounds (Max.114dB at 1m), 5 User-Defined Voices (108-113dB at 1m)

  • Voltage

    DC:12V,24VAC:110V,220V

  • Dimension

    Horn Diameter : Ø120 Depth : 175

  • Materials

    Housing-Al Horn Housing-PC

  • Protection rating

    IP66

  • Certificate

※ Please refer to technical information page for detailed specification including measurement.

(PDF Viewer, PDF Download, Auto-CAD)

  • Product Feature
  • Product Specifications
  • Download

Product Feature

Product Feature
  • Alarm horns with tightly sealed structure has excellent durability. Suitable for vessels, steel industry, and outdoor plant applications
  • Aluminum housing provides excellent durability
  • A variety of sound selection between warning sounds, alarm sounds, melodies and voice messages to fit your sophisticated application needs
  • Can adjust sound volume with the dial built inside the unit
  • Terminals located inside the terminal box or product
  • Cable entry : 1/2″PF
  • Standard Housing color : MUNSELL No. 7.5BG 7/2
  • Ambient operating temperature : -30°C to +50°C
  • Protection rating : IP66, Suitable for outdoor installation
  • Certificates :  CCS, CE Compliant

  • Product Feature
  • Product Specifications
  • Download

Product Specifications

Model numberVoltageCurrentSound pattern and volumeCertificatesWeight
SEWN30EDC12V2.2A

·WS-5 Warning sounds: Max.114dB

·WP-5 Special warning sounds: Max.114dB

·WM-5 Melodies: Max.110dB

·WA-5 Alarms: Max.114dB

·WV-5 Customizable voices: 108-113dB



DC- 1.76kg
AC- 2.11kg
DC24V1A
AC110V260mA
AC220V130mA

※ CE compliant : AC220V, DC24V

※ CCS compliant : SEWN30E only

※ Max.built-in volume feature is based on WS, WP-Ch1 / WM-Ch4 / WA-Ch4.

※ In case of customized WV 5 tone type, there may be difference of volume depending on user’s audio file type.

Sound Tone Combination of Standard Product

Sound Category Sound Tone Channel Sound
5 Warning Sounds
Fire.A-ANG
Emergency WA-U(Yelp)
Ambulance PI-PO(Hi-low)
Machinery Fault
High Expansion
Ch1
Ch2
Ch3
Ch4
Ch5
5 Special Warning Sounds (1st Group)
Fire.A-ANG
Abandon Alarm
Machunery Fault
High Expansion
7 Short PI. / 1 Long
Ch1
Ch2
Ch3
Ch4
Ch5
5 Melodies
Sweet Home
For Elise
Cuckoo's Waltz
Piano Sonata
Turkish March
Ch1
Ch2
Ch3
Ch4
Ch5
5 Alarms
Beep Intermittent
Door Chime
Phone Ring
PI.PI.PI. Short Interval
Tripping Beat
Ch1
Ch2
Ch3
Ch4
Ch5
5 Customizable voices
Customized sound
Ch1
Ch2
Ch3
Ch4
Ch5
