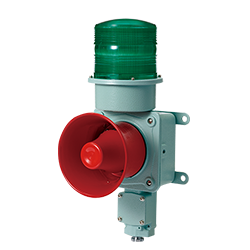

Signal Beacon and Electronic Sounder Combinations for Vessels and Heavy Industry Applications
Xenon Lamp Strobe Signal Beacon and Electronic Sounder Combination Max.114dB
Xenon Lamp Strobe TypeIP66-30℃ ~ +50℃Horn114dBNPN-Transistor Type
  • Product Feature

    20 Built-in Sounds (Max.114dB at 1m), 5 User-Defined Voice (108-113dB at 1m)

  • Voltage

    DC:12V,24VAC:110V,220V

  • Dimension

    Lens Diameter : Ø138 Height : 410 Depth : 175

  • Materials

    Lens-PC Housing-Al

  • Protection rating

    IP66

※ Please refer to technical information page for detailed specification including measurement.

(PDF Viewer, PDF Download, Auto-CAD)

  • Product Feature
  • Product Specifications
  • Download

Product Feature

Product Feature
  • Wall mount signal beacon & electronic sounder combinations for marine and heavy industries applications
  • Convenient lamp exchange by adopting a connector type lamp installation
  • Aluminum housing and polycarbonate lens material provides excellent impact and shock resistance
  • Excellent hermetic structure that block water and dust
  • Attached terminal box enables easy wiring
  • Can adjust sound volume and select sound pattern with the switches built inside the products
  • Cable entry : 1/2″ PF
  • Materials : Lens-PC, Housing-Al, Protection cage-STS316L
  • Standard housing color : MUNSELL No. 7.5GBG 7/2
  • Flashing rate : 60-80 flashes/min
  • Ambient operating temperature : -30°C to +50°C
  • Protection rating : IP66

  • Product Feature
  • Product Specifications
  • Download

Product Specifications

Model
number
VoltageCurrentXenon lamp
Sound pattern and volumeCertificatesWeightColor
SpecStandardParts no
SDS
SDSP
DC12V2.5A
200V-550VEUB0641-1A(G)
U type
48

·WS-5 Warning sounds: Max.114dB

·WP-5 Special warning sounds: Max.114dB

·WM-5 Melodies: Max.110dB

·WA-5 Alarms: Max.114dB

·WV-5 Customizable voices: 108-113dB

-
· SDS
DC-3.28kg
AC-3.66kg

· SDSP
DC-3.57kg
AC-3.95kg
R-Red
A-Amber
G-Green
B-Blue
DC24V1.4A
AC110V360mA
AC220V220mA

Sound Tone Combination of Standard Product

Sound Category Sound Tone Channel Sound
5 Warning Sounds
Fire.A-ANG
Emergency WA-U(Yelp)
Ambulance PI-PO(Hi-low)
Machinery Fault
High Expansion
Ch1
Ch2
Ch3
Ch4
Ch5
5 Special Warning Sounds (1st Group)
Fire.A-ANG
Abandon Alarm
Machunery Fault
High Expansion
7 Short PI. / 1 Long
Ch1
Ch2
Ch3
Ch4
Ch5
5 Melodies
Sweet Home
For Elise
Cuckoo's Waltz
Piano Sonata
Turkish March
Ch1
Ch2
Ch3
Ch4
Ch5
5 Alarms
Beep Intermittent
Door Chime
Phone Ring
PI.PI.PI. Short Interval
Tripping Beat
Ch1
Ch2
Ch3
Ch4
Ch5
5 Customizable voices
Customized sound
Ch1
Ch2
Ch3
Ch4
Ch5
