SAOL Series
Copied to clipboard

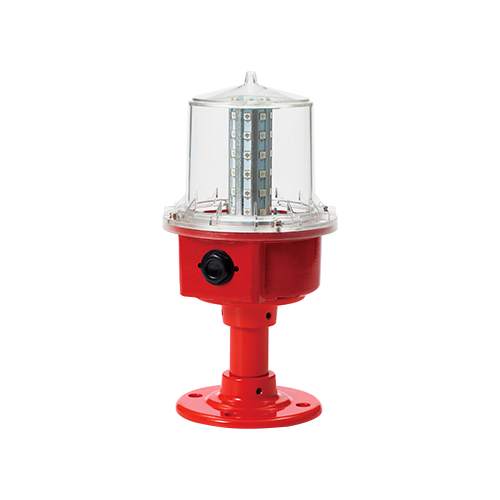

SAOL2/SAOL2P
- Product Feature
Low Intensity LED Steady Type 19cd ±25%
- Voltage
DC:12V,24V│AC:110V-220V
- Dimension
Diameter : Ø139 │SAOL2 Height : 185 │SAOL2P Height : 274
- Materials
Lens- PC │Housing - Al │Bracket-STS316L │Pole-STS
- Protection rating
IP66
- Certificate
※ Please refer to technical information page for detailed specification including measurement.
(PDF Viewer, PDF Download, Auto-CAD)
Product Feature
Product Feature- Low intensity A type aviation obstruction lights are installed onto fixed objects that are less than 150m from the land or water surface
Can choose between self stand type and pole mounting type depending on environment
Terminals located inside the housing for wiring
Product Specifications
| ICAO standard | Low intensity A type | ||
| Light source | High intensity light emtting diodes(LED) | ||
| Light color | Red | ||
| Light function | Steady | ||
| Rated voltage | DC12V, DC24V, AC110V-220V | ||
| Power Consumption | Max.24W | ||
| Standard housing color | Red | Cable entry | Ø20 |
| Materials | Lens-PC, Housing-Al, Bracket-STS316L, Pole-STS | ||
| Protection rating | IP66 | Ambient operating temperature | -30℃ to +50℃ |
| Certificates | | Luminous intensity | 19cd ±25% |
※ ICAO standard: DC24V, AC110V-220V
