S Series (Ø50-80)
Copied to clipboard
S80AS
Max.90dB





- Product Feature
Buzzer volume fixed type (Max. 90dB at 1m) : optionally available
- Voltage
DC:12V-24V│AC:110V,220V
- Dimension
Lens Diameter : │Ø80(Approx.) │Height : 127 │Depth : 113
- Materials
Lens-AS │Housing-ABS
- Protection rating
IP44
※ Please refer to technical information page for detailed specification including measurement.
(PDF Viewer, PDF Download, Auto-CAD)
Product Feature

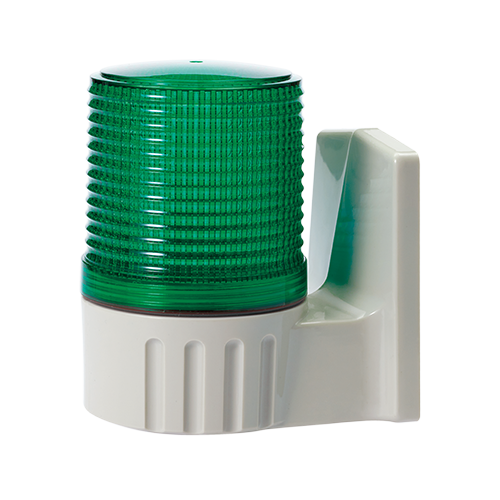

Product Feature- Ø80mm xenon lamp strobe signal light
- It has high instantaneous luminous efficiency and emits signal light close to natural light, providing excellent long-distance visibility
- Lamp connector fastening structure allows for convenient lamp replacement
- Flashing rate : 60-80 flashes/min
- Ambient operating temperature : -30°C to +50°C
Product Specifications
Model number | Voltage | Current | Bulb | Certificates | Weight | Color | ||
---|---|---|---|---|---|---|---|---|
Spec | Standard | Parts no | ||||||
S80AS | DC12V-24V | Max.510mA | 220V-350V | BGA2120-BBC I type | 47 | - | 0.27kg | ![]() ![]() ![]() ![]() |
AC110V | 210mA | 0.24kg | ||||||
AC220V | 200mA | 0.24kg |
※ DC type model has a free-voltage range of 10V-30V
