S Series (Ø150-180)
Copied to clipboard

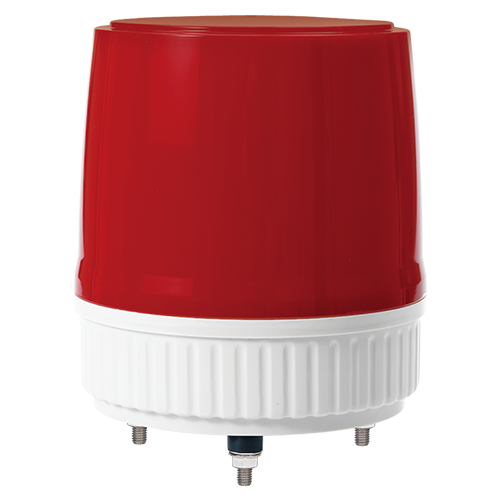

S180UHS
Xenon Lamp Strobe Signal Light
Max.90dB
- Product Feature
Buzzer volume fixed type (Max. 90dB at 1m) : optionally available
- Voltage
DC:12V-24V│AC:110V,220V
- Dimension
Lens Diameter : │Ø180(Approx.) │Height : 216
- Materials
Lens-ABS │Housing-ABS
- Protection rating
IP44
※ Please refer to technical information page for detailed specification including measurement.
(PDF Viewer, PDF Download, Auto-CAD)
Product Feature
Product Feature- Excellent long distance visibility from flashing light of the high capacity xenon lamp
- Adopts a translucent lens which provides a luminous light and subdued signal
- Convenient lamp change adopts lamp connector type structure
- Built-in buzzer available(Volume : Max. 90dB at 1m)
- Materials: Lens-ABS, Housing-ABS
- Flashing rate : 60-80 flashes/min(2 time consecutively flashing off or two in a row)
- Ambient operating temperature : -30°C to +50°C
- Protection rating : IP44
Product Specifications
| Model number | Voltage | Current | Xenon lamp | Certificates | Weight | Color | ||
|---|---|---|---|---|---|---|---|---|
| Spec | Standard | Parts no | ||||||
| S180UHS | DC12V-24V | Max.2.28A | 280V-400V | BH0647(G) W type | 49 | - | 1.18kg |  R-Red A-Amber G-Green B-Blue |
| AC110V | 890mA | 1.02kg | ||||||
| AC220V | 500mA | 1.02kg | ||||||
