S Series (Ø150-180)
Copied to clipboard

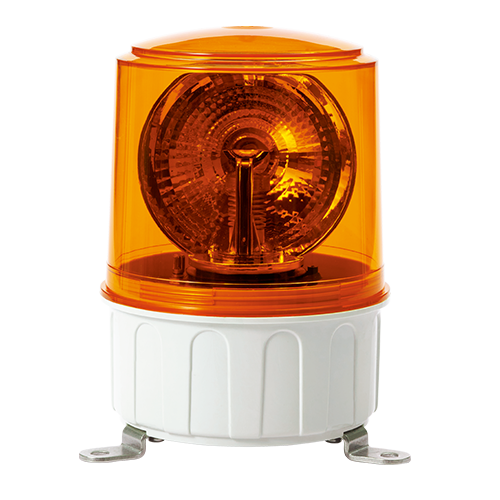

S150ULR-FT
- Product Feature
Buzzer volume fixed type (Max. 90dB at 1m) : optionally available
- Voltage
DC:12V,24V│AC:110V,220V
- Dimension
Lens Diameter : │Ø150(Approx.) │Height : 196
- Materials
Lens-PC │Housing-ABS
- Protection rating
IP44
※ Please refer to technical information page for detailed specification including measurement.
(PDF Viewer, PDF Download, Auto-CAD)
Product Feature
Product Feature- Special power transmission system which allows low noise and less wear
- Mounting bracket allows convenient installation in case of XXX-FT type
- Excellent omni-directional visibility with LED light collecting system and special multifaceted reflector
- Built-in buzzer available (Volume : Max. 90dB at 1m)
- Revolving speed : 120-140RPM
- Materials : Lens - PC, Housing - ABS, Reflector - Heat resistant ABS, Mounting bracket - STS316L
- Ambient operating temperature : -20°C to +50°C
- Protection rating : IP44
Product Specifications
| Model number | Voltage | Current | Certificates | Weight | Color |
|---|---|---|---|---|---|
| S150ULR-FT | DC12V | 520mA | - | 0.66kg |  R-Red A-Amber G-Green B-Blue |
| DC24V | 260mA | 0.66kg | |||
| AC110V | 80mA | 0.85kg | |||
| AC220V | 45mA | 0.85kg |
ㆍExcellent omni-directional visibility with LED light collecting system and special multifaceted reflector
