QT Series
Copied to clipboard

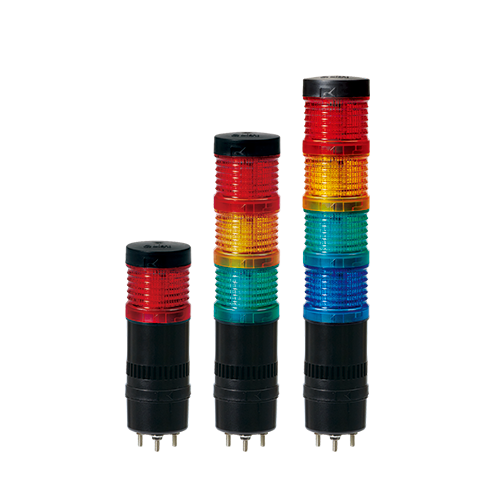

QT50ML-BZ
LED Tower Lights
Max.90dB
- Product Feature
Buzzer volume controllable type (Max. 90dB at 1m)
- Voltage
DC:12V,24V│AC:110V,220V
- Dimension
Diameter : Ø50mm │Height : │83-247
- Materials
Lens-PC │Housing-PC
- Protection rating
IP54
- Certificate
※ Please refer to technical information page for detailed specification including measurement.
(PDF Viewer, PDF Download, Auto-CAD)
Product Feature
Product Feature- QT series tower light is a multifunctional product that allows for significant customization to your specific needs using our special modular components such as the lens, buzzer, ethernet cord, USB cord and mounting brackets. Additional tools are not required for assembly
- All modular components can be arranged freely to the user desired position (upper/ lower) except for the dial tone lever
- Product that consist of LED module, base module, Buzzer module
- Buzzer modules position can be chosen freely
- Can select from a variety of LED light functions
- Material : Lens-PC, Housing-PC
- Ambient operating temperature : -30°C to +50°C
- Protection rating : IP54
Product Specifications
| Model number | Layer | Voltage | Certificates | Weight | Color |
|---|---|---|---|---|---|
| QT50ML-BZ QT50MLF-BZ (Max. 90dB) | 1 | DC12V DC24V AC110V AC220V | | 0.17kg 0.17kg 0.18kg 0.18kg |  R-Red |
| 2 | DC12V DC24V AC110V AC220V | 0.21kg 0.21kg 0.22kg 0.22kg | R-Red G-Green | ||
| 3 | DC12V DC24V AC110V AC220V | 0.25kg 0.25kg 0.26kg 0.26kg | R-Red A-Amber G-Green | ||
| 4 | DC12V DC24V AC110V AC220V | 0.30kg 0.30kg 0.31kg 0.31kg | R-Red A-Amber G-Green  B-Blue |
※ CE compliant: DC12V, DC24V, AC220V
QT50ML : Steady Module QT50MLF : Steady/Flashing Module
+
Base Module(BS)
+
Buzzer(BZ)
Light source/buzzer current(based on 1 layer)
Voltage | DC12V | DC24V | AC110V | AC220V |
|---|---|---|---|---|
Light source current(1 layer) | 100mA | 55mA | 25mA | 25mA |
| Buzzer current | 30mA | 55mA | 110mA | 130mA |
Sound Tone Combination of Standard Product
| Sound Category | Sound Tone | Sound |
|---|---|---|
| 1 Buzzer Sound | Pi-- Pi-- slow |
