QNE-CR Series
Copied to clipboard
QNE-CR
- Product Feature

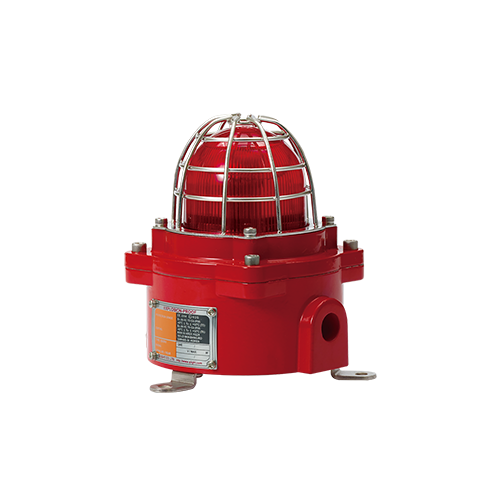

Small explosion proof ATEX/IECEx certified LED Signal Beacon
- Voltage
DC:12V-24V│AC:110V-230V
- Dimension
Cage Diameter : Ø130 │Height : 172 │Length : 131
- Materials
Lens-Tempered glass │Filter-PC │Bracket-STS316L │Protection cage-STS316 │Housing-Al
- Protection rating
Ex db IIC T6/T5 Gb│IP66
- Certificate
※ Please refer to technical information page for detailed specification including measurement.
(PDF Viewer, PDF Download, Auto-CAD)
Product Feature
Product Feature- Explosion proof, multifunctional, and compact LED signal light designed for use in explosive gas environments with Ex d Ⅱ C rating
- ATEX/IECEx exproof Beacon sounder combination unit that can be used in an environment of extremely low temperature as low as -52℃(-61.6℉)
- Cold resistant parts realize stable operation of beacon at very low temperature
- Features excellent shock and vibration resistance, maintenance significantly reduced with long-lasting LED light source
- Features superior durability with aluminum housing
- Fully enclosed structure with protection rating of IP66
- Housing standard color: Red, MUNSELL No. 7.5BG 7/2
- Cable Entry : 1/2” NPT
- Flashing rate(LF type) : 60~80/min.
- Strobe rate(LS type) : 70~80/min.
- Simulated revolving rate(LR type) : 120~140RPM
- Certificates : ATEX, IECEx
- Protection rating : ATEX -
II2G Ex db IIC T5/T6 Gb, IP66
IECEx - Ex db IIC T5/T6 Gb, IP66 - Ambient operating temperature : -52℃ ≤ Tamb ≤ +60℃(T5)
-52℃ ≤ Tamb ≤ +50℃(T6)
II2G Ex db IIC T5/T6 Gb, IP66
Product Specifications
| Model number | Voltage | Current | Certificates | Weight | Color |
|---|---|---|---|---|---|
| QNE-CR | DC12V-24V | Max.350mA | | 2.05kg |  R-Red A-Amber G-Green B-Blue |
| AC110V-230V | Max.110mA |
