QDT50L-IOL Series
Copied to clipboard
QDT50L-IOL

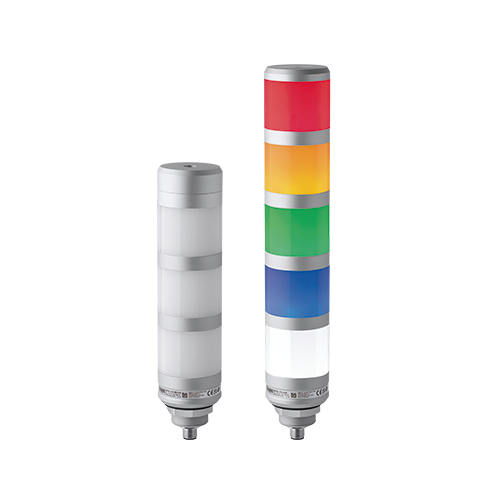

Programmable LED Tower Light with IO-Link Technology Max.80dB
- Voltage
DC:24V
- Dimension
Diameter : Ø51 │Height : 165-278
- Materials
Housing-Al │Lens-PC
- Protection rating
IP65/IP20
- Certificate
※ Please refer to technical information page for detailed specification including measurement.
(PDF Viewer, PDF Download, Auto-CAD)
Product Feature
Product Feature- State-of-the-art multi colored LED Signal Tower Light with IO-Link technology
- Signaling device optimized for Industry 4.0
- Plug & play technology applied for immediate operation when mounted on an international standard M12 connector

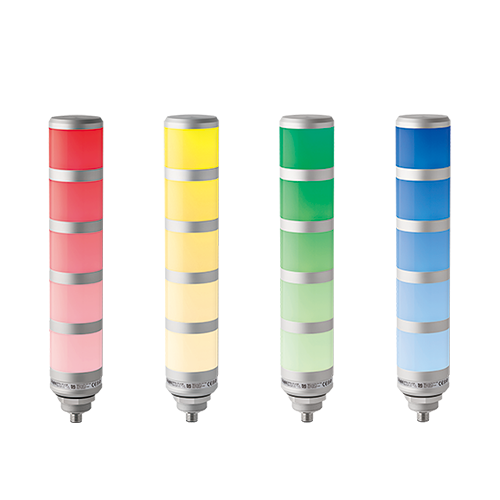

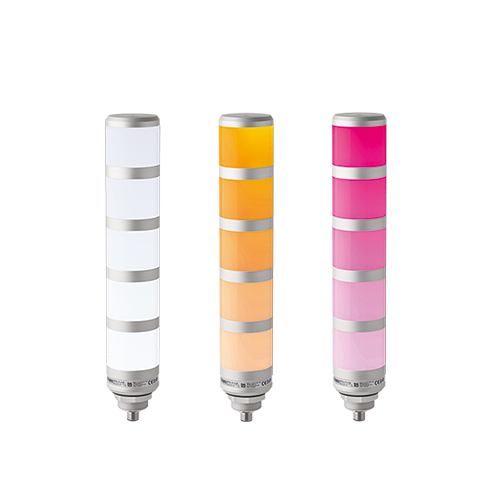

- 8 types of preset color modes and user-defined settings
- Optional 80dB built-in buzzer available
- Convenient environment setting possible via IO-Link
- Ambient operating temperature: 0°C to +50°C
Product Specifications
| Model number | Layers | Voltage | Certificates | Weight | Color |
|---|---|---|---|---|---|
QDT50L-IOL Standard QDT50L-IOL-BZ Buzzer type | 3 | DC24V | | 0.27kg |
|
| 0.31kg | |||||
| 5 | 0.35kg | ||||
| 0.39kg |
R-Red
G-Green
Y-Yellow
B-Blue
W-White
O-Orange
P-Pink
Custom
