QDML-IOL Series
Copied to clipboard
QDML-IOL
Programmable LED Work Light with IO-Link Technology
- Voltage
DC:24V
- Materials
Housing-Al │Lens-PU
- Protection rating
IP67
- Certificate
※ Please refer to technical information page for detailed specification including measurement.
(PDF Viewer, PDF Download, Auto-CAD)
Product Feature
Product Feature- State-of-the-art multi colored LED Work Light with IO-Link technology
- Signaling device optimized for Industry 4.0
- Plug & play technology applied for immediate operation when mounted on an international standard M12 connector

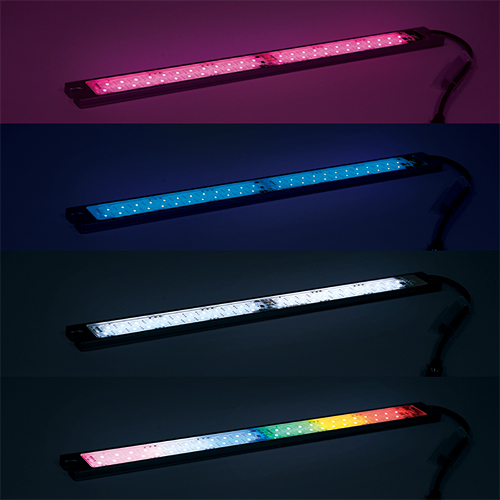

- 8 types of preset color modes and user-defined settings
- Convenient environment setting possible via IO-Link
- Available in a variety of lengths from 125mm to 900mm, allowing customers can choose an appropriate options
- High protection rating of IP67 allows use in various environments
- Ambient operating temperature: 0°C to +50°C
Product Specifications
| Optics Specifications | |||||
|---|---|---|---|---|---|
| Model number | QDML-IOL-125 | QDML-IOL-250 | QDML-IOL-480 | QDML-IOL-700 | QDML-IOL-910 |
| Lens color | Transparent | ||||
| Light color | Red, Green, Yellow, Blue, White, Orange, Pink, Customization | ||||
| Deflection angle FWHM | 120° | ||||
| Specifications | |||||
| Model number | QDML-IOL-125 | QDML-IOL-250 | QDML-IOL-480 | QDML-IOL-700 | QDML-IOL-910 |
| Voltage | DC24V | ||||
| Range for operation voltage | DC18V-DC30V (Supply Class 2) | ||||
| Power consumption | 3W | 5W | 9.1W | 13.4W | 17.5W |
| Insulation resistance | Min. 100MΩ (500V DC mega ohm meter) | ||||
| Withstanding voltage | DC: 500VAC, 60Hz, 1 minute/AC: 1,500VAC, 60Hz, 1 minute | ||||
| Operating temperature | 0℃ to +50℃ | ||||
| Protection rating | IP67 | ||||
| Materials | Housing-Al, Lens-PU | ||||
| Certificate | | ||||
| Weight(Approx.) | 0.115kg | 0.21kg | 0.39kg | 0.55kg | 0.70kg |
