QDB50-IOL
Copied to clipboard
QDB50-IOL

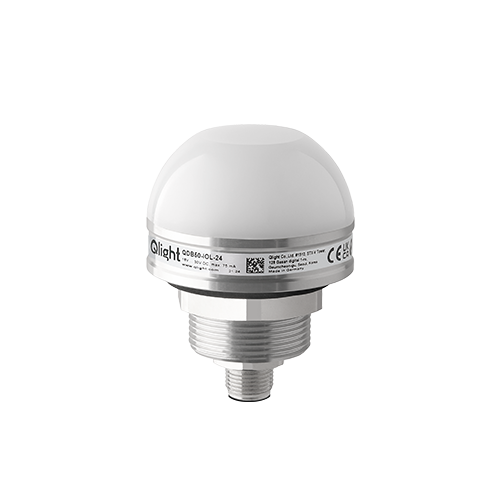

Programmable LED Signal Beacon Light with IO-Link Technology
- Voltage
DC:24V
- Dimension
Outdia : Ø50 │Height : 66
- Materials
Housing-Al │Lens-PC
- Protection rating
IP67
- Certificate
※ Please refer to technical information page for detailed specification including measurement.
(PDF Viewer, PDF Download, Auto-CAD)
Product Feature
Product Feature- State-of-the-art multi colored LED Signal Beacon Light with IO-Link technology
- Signaling device optimized for Industry 4.0
- Plug & play technology applied for immediate operation when mounted on an international standard M12 connector

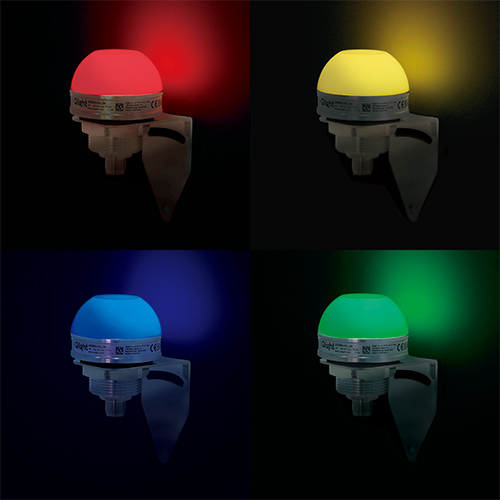

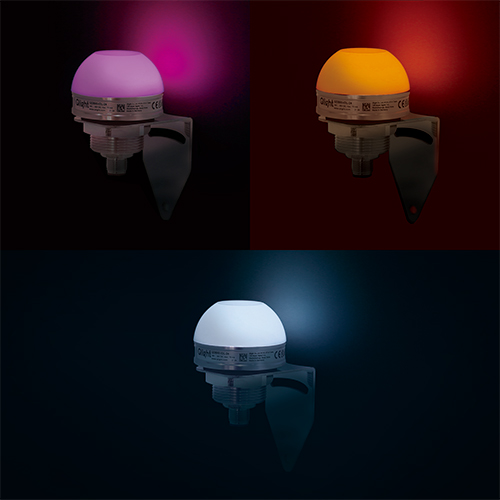

- 8 types of preset color modes and user-defined settings
- Convenient environment setting possible via IO-Link
- High protection rating of IP67 allows use in various environments
- Ambient operating temperature: 0°C to +50°C
Product Specifications
| Model number | Voltage | Certificates | Weight | Color |
|---|---|---|---|---|
QDB50-IOL Steady | DC24V | | 0.116kg |
|
R-Red
Y-Yellow
G-Green
B-Blue
W-White
O-Orange
P-Pink
Custom
