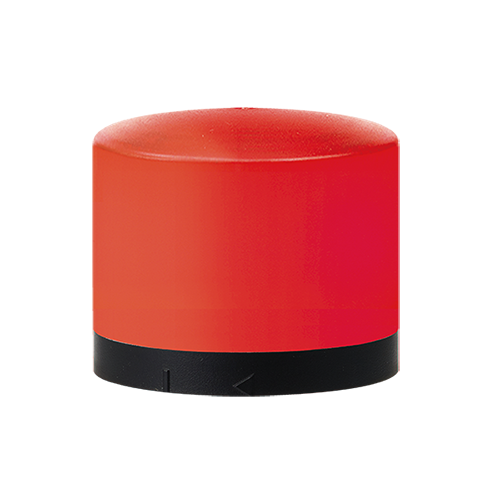

Cover integrated LED module
Copied to clipboard
MRA70
- Product Feature
Cover integrated Lens option is available
- Voltage
DC:24V
- Dimension
Ø70x62
- Materials
PC
- Protection rating
IP65
- Certificate
※ Please refer to technical information page for detailed specification including measurement.
(PDF Viewer, PDF Download, Auto-CAD)
Product Feature
Product Feature- Integrated cover and lens module for modular LED tower light
- Sleek lens cover model is made of one piece for a simple unified look
- 3 unique visual effects are possible as different
- Soft and comfortable signal light emitted through the translucent milky lens
- Shift locking design realizes assembly and disassembly without additional tools
- Steady/Flashing mode can be selected by using dip switch inside of the LED module
- Flashing rate : 60~80/min
- Ambient operating temperature : -30℃ ~ +50℃
- Compliant with RoHS directive
Product Specifications
| Model number | Color | Voltage | Current | Dimension | Material | Certificates |
|---|---|---|---|---|---|---|
| MRA70-R-24 | Red | DC24V | 70mA | Ø70x62 | PC | |
