STND Series
Copied to clipboard

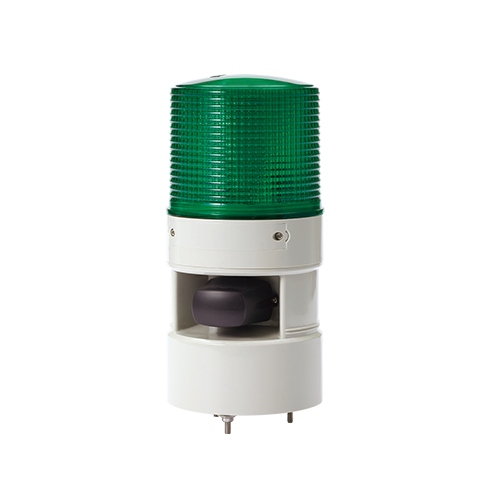

STND125L-N
- Voltage
DC:12V,24V│AC:110V-220V
- Dimension
Lens Diameter : Ø115 │Body Diameter : Ø119 │Height : 250
- Materials
Lens-AS │Housing-ABS
- Protection rating
IP54
- Certificate
※ Please refer to technical information page for detailed specification including measurement.
(PDF Viewer, PDF Download, Auto-CAD)
Product Feature
Product Feature- Combination of warning light and horn allows transmission of both visual and audible signals together
- Appropriate sound tones can be chosen depending on the various working environments among the various type of available sound tones
- Built-in 30 sound tones, support binary and bit input modes
- Binary input mode can playback 30 sound tones by using sound tone select switch
- Bit input mode consists of 5 sound types with 6 groups. Choose one of the groups to play 5 sounds from that group.
- Standard unit choose built-in sound only. It can choose 30 sounds in accordance with the customer’s needs.
- Excellent visibility that employs a special scattering lens
- Materials : Lens-AS, Housing-ABS, Reflector-Heat resistant ABS
- Ambient operating temperature-30°C to +50°C
- Protection rating : IP54
- Flashing rate : 60-80 flashes/min(Built-in switch for selection between steady and flashing mode)
- Certificates : CE Compliant
- Compliant with RoHS directive
Product Specifications
| Model number | Voltage | Current | Sound Pattern and Volume | Certificates | Weight | Color |
|---|---|---|---|---|---|---|
| STND125L-N | DC12V-24V | Max.570mA | · Bit Input : 5Ch · Binary Input : 30Ch · Built-in sounds : Max.105dB (Based on WS-Ch5) | | 1.32kg |  R-Red A-Amber G-Green B-Blue |
| AC110V-220V | Max.210mA | 1.65kg |
ㆍExcellent visibility that employs a special scattering lens
ㆍAmbient operating temperature: -30°C to +50°C
ㆍFlashing rate: 60-80/min(Built-in switch for selection between steady and flashing mode)
※ CE compliant: DC24V
Sound Tone Combination of Standard Product
| Sound Category | Sound Tone | Channel | Sound |
|---|---|---|---|
| 5 Warning Sounds | Fire.A-ANG Emergency WA-U(Yelp) Ambulance PI-PO(Hi-low) Machinery Fault High Expansion |
||
| 5 Special Warning Sounds (1st Group) | Fire.A-ANG Abandon Alarm Machunery Fault High Expansion 7 Short PI. / 1 Long |
||
| 5 Melodies | Sweet Home For Elise Cuckoo's Waltz Piano Sonata Turkish March |
||
| 5 Alarms | Beep Intermittent Door Chime Phone Ring PI.PI.PI. Short Interval Tripping Beat |
||
| 5 Special Warning Sounds (2nd Group) | Rel rel rel Slow Ambulance PI-PO Wye yong Wye yong Phone ring 2 Fire.A-ANG |
||
| 5 Special Warning Sounds (3nd Group) | Oit Oit Pi o Pi o Slow Di o Di o Li long Li ling 911 Siren |
