SED/SD/SMD Series
Copied to clipboard
SMD
- Product Feature
20 integrierte Töne (Max.120dB at 1m), 5 User-Defined Voice (109-117dB at 1m)
- Voltage
DC:12V,24V│AC:110V,220V
- Dimension
Lens Diameter : Ø138 │Height : 462 │Depth : 210
- Materials
Linse-PC │Gehäuse-Al
- Protection rating
IP66
※ Please refer to technical information page for detailed specification including measurement.
(PDF Viewer, PDF Download, Auto-CAD)
Product Feature

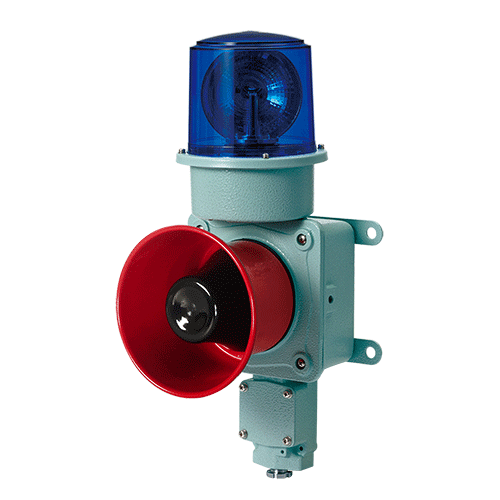

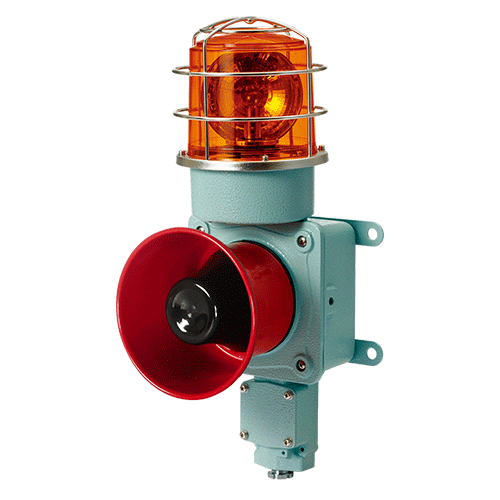

Product Feature- Wall mount warning light and electric horn combinations for vessels and heavy industrial applications
- Aluminum housing and polycarbonate lens material provides excellent impact and shock resistance
- Excellent hermetic structure that block water and dust
- Attached terminal box enables easy wiring
- Can adjust sound volume and select sound pattern with the switches built inside the products
- Cable entry : 1/2″ PF
- Materials : Lens-PC, Housing-Al, Protection cage-STS316L, reflector-PC
- Standard housing color : MUNSELL No. 7.5GBG 7/2
- Revolving speed : 120-140RPM
- Ambient operating temperature : -20°C to + 50°C
- Protection rating : IP66
Product Specifications
| Model number | Voltage | Current | Bulb | Sound pattern and volume | Certificates | Weight | Color | ||
|---|---|---|---|---|---|---|---|---|---|
| Spec | Standard | Parts no | |||||||
| SMD SMDP | DC12V | 3.6A | 12V15W | G23 15S | 17 | ·WS-5 Warning sounds: Max.120dB ·WP-5 Special warning sounds : Max.120dB ·WM-5 Melodies: Max.115dB ·WA-5 Alarms: Max.118dB ·WV-5 Customizable voices: 109-117dB | - | · SMD DC-5.98kg AC-6.76kg · SMDP DC-6.27kg AC-7.05kg |  R-Red A-Amber G-Green B-Blue |
| DC24V | 1.8A | 24V15W | G23 15S | 18 | |||||
| AC110V | 470mA | 12V15W | G23 15S | 17 | |||||
| AC220V | 280mA | 12V15W | G23 15S | 17 | |||||
Sound Tone Combination of Standard Product
| Sound Category | Sound Tone | Channel | Sound |
|---|---|---|---|
| 5 Warning Sounds | Fire.A-ANG Emergency WA-U(Yelp) Ambulance PI-PO(Hi-low) Machinery Fault High Expansion |
||
| 5 Special Warning Sounds (1st Group) | Fire.A-ANG Abandon Alarm Machunery Fault High Expansion 7 Short PI. / 1 Long |
||
| 5 Melodies | Sweet Home For Elise Cuckoo's Waltz Piano Sonata Turkish March |
||
| 5 Alarms | Beep Intermittent Door Chime Phone Ring PI.PI.PI. Short Interval Tripping Beat |
||
| 5 Customizable voices |
